MAL205015333E3
ActiveVishay Dale
CAP ALUM 33000UF 16V SOLDER LUG
MAL205015333E3
ActiveVishay Dale
CAP ALUM 33000UF 16V SOLDER LUG
Description
General part information
MAL205015333E3
33000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Solder Lug 20mOhm @ 100Hz 15000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL205015333E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 33000 µF |
| ESR (Equivalent Series Resistance) | 20 mOhm |
| Height - Seated (Max) | 2.835 in |
| Impedance | 17 mOhms |
| Lead Spacing | 0.394 in |
| Lifetime | 15000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |

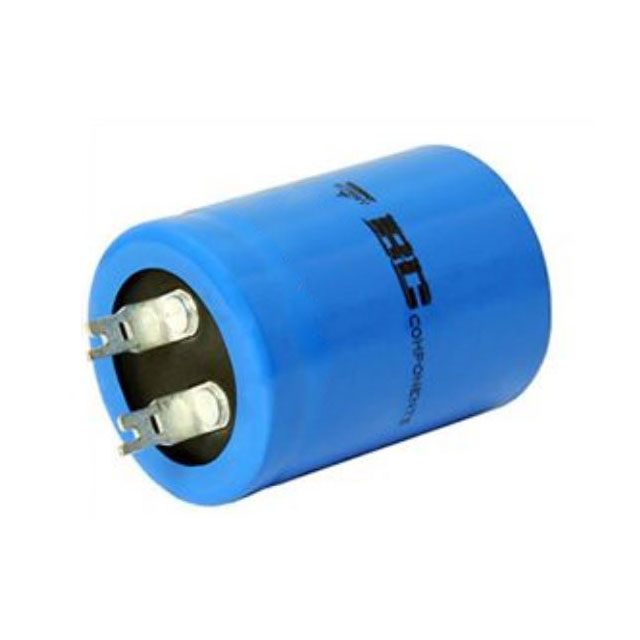

| Package / Case | Radial, Can - Solder Lug |
| Polarization | Polar |
| Ripple Current | 6.7 A |
| Size / Dimension Diameter | 1.575 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 16 V |
