9575 002U1000

Active

Belden Inc.

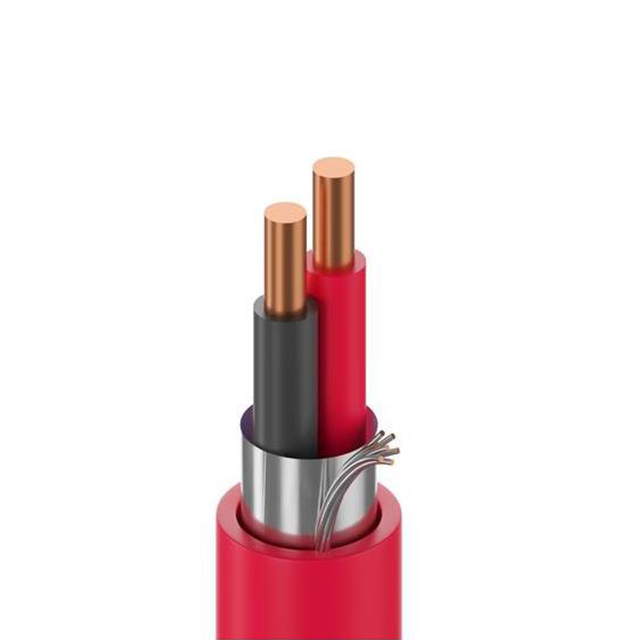

CABLE 2COND 16AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9575 002U1000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.241 in
Jacket (Insulation) Diameter [diameter]	6.12 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.914 mm
Jacket (Insulation) Thickness	0.036 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	16 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Shield Type	Cable Type	Length	Length	Jacket Color	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Number of Conductors	Shield Coverage	Jacket (Insulation) Material	Ratings	Shield Material	Wire Gauge
Belden Inc. 9575 002U1000	-40 °C	105 ░C	Alarm Safety	Foil	Multi-Conductor	1000 ft	304.8 m	Red	Copper Bare	0.914 mm	0.036 in	300 V	Solid	0.241 in	6.12 mm	Poly-Vinyl Chloride (PVC)	2	100 %	Poly-Vinyl Chloride (PVC)	UL Style 2464	Aluminum	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.52

General part information

2 Conductor Multi-Conductor Cable Red 16 AWG Foil 1000.0' (304.8m)
