RMA.0S.302.CLL

Active

LEMO

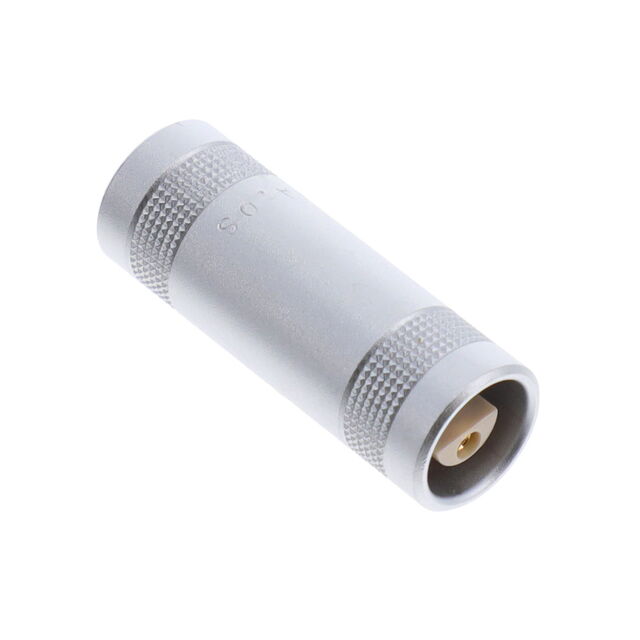

CONN ADAPTER 2P-2P F/M-F/M

Search across all available documentation for this part.

Active

LEMO

CONN ADAPTER 2P-2P F/M-F/M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RMA.0S.302.CLL	RMA.0S Series

Adapter Series	-	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549
Adapter Type	-	Jack to Jack
Body Finish	-	Chrome
Body Material	-	Brass
Center Contact Plating	-	Gold
Center Gender	-	Female to Female
Connector Style	Standard	Standard
Conversion Type	-	Same Series
Convert From (Adapter End)	Female Sockets and Male Pins	NIM-CAMAC CD/N 549 Jack, Female Socket, Female Sockets and Male Pins
Convert To (Adapter End)	Female Sockets, Male Pins	Female Sockets, Male Pins
Current Rating (Amps)	10 A	7 - 10 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver
Housing Finish	Chrome	Chrome
Housing Material	Brass	Brass
Impedance	-	50 Ohms
Ingress Protection	IP50	IP50
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions (Convert From)	2	2 - 4
Number of Positions (Convert To)	2	2 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation (Convert From)	Keyed	Keyed
Orientation (Convert To)	Keyed	Keyed
Shell Size - Insert (Convert From)	302	302 - 304
Shell Size - Insert (Convert To) [custom]	302	302 - 304
Shielding	Shielded	Shielded
Style	-	Straight

CONN ADAPT JACK TO JACK 50 OHM

Part	Mounting Type	Impedance	Style	Center Gender	Adapter Series	Ingress Protection	Body Finish	Center Contact Plating	Fastening Type	Adapter Type	Body Material	Convert From (Adapter End)	Conversion Type	Dielectric Material	Shell Size - Insert (Convert To) [custom]	Convert To (Adapter End)	Number of Positions (Convert To)	Orientation (Convert From)	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert (Convert From)	Housing Color	Connector Style	Current Rating (Amps)	Orientation (Convert To)	Housing Material	Housing Finish	Number of Positions (Convert From)
LEMO RMA.0S.250.CTM	Free Hanging (In-Line)	50 Ohms	Straight	Female to Female	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	IP50	Chrome	Gold	Push-Pull	Jack to Jack	Brass	NIM-CAMAC CD/N 549 Jack, Female Socket	Same Series	Polytetrafluoroethylene (PTFE)
LEMO RMA.0S.304.CLL	Free Hanging (In-Line)					IP50			Push-Pull			Female Sockets and Male Pins			304	Female Sockets, Male Pins	4	Keyed	Shielded	-55 °C	250 °C	304	Silver	Standard	7 A	Keyed	Brass	Chrome	4
LEMO RMA.0S.302.CLL	Free Hanging (In-Line)					IP50			Push-Pull			Female Sockets and Male Pins			302	Female Sockets, Male Pins	2	Keyed	Shielded	-55 °C	250 °C	302	Silver	Standard	10 A	Keyed	Brass	Chrome	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Standard 2/2 Female Sockets and Male Pins/Female Sockets and Male Pins Free Hanging (In-Line)
