MEV1D0509DC

Active

Murata Power Solutions Inc.

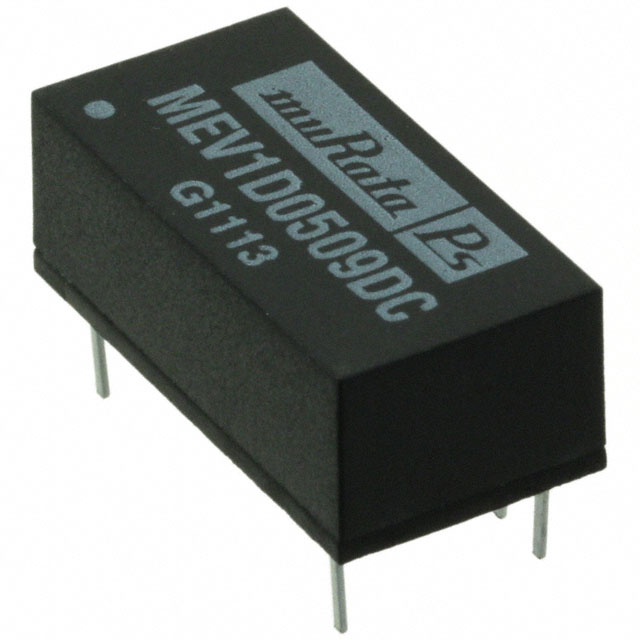

DC DC CONVERTER +/-9V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MEV1D0509DC	MEV1D05 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	33 - 100 mA
Current - Output (Max)	-	42 mA
Current - Output (Max)	-	42 mA
Efficiency	87 %	85 - 88 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 6 Leads	7-SIP Module, 5 Leads, 14-DIP Module, 6 Leads
Size / Dimension [x]	0.78 "	0.77 - 0.78 in
Size / Dimension [x]	19.7 mm	19.7 mm
Size / Dimension [y]	0.39 "	0.24 - 0.39 "
Size / Dimension [y]	10 mm	6.2 - 10 mm
Size / Dimension [z]	0.28 "	0.28 - 0.4 "
Size / Dimension [z]	7 mm	7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	9 V	5 - 15 V
Voltage - Output 2	-9 V	-15 - -5 V

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 1:1, 1 W, 2 OUTPUT, 5 V, 100 MA

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Output 2	Mounting Type	Package / Case	Efficiency	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. MEV1D0505SC	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	ITE (Commercial)	85 °C	-40 °C	3000 V	4.5 V	5 V	-5 V	Through Hole	7-SIP Module, 5 Leads	85 %	2	5.5 V	100 mA	100 mA	Isolated Module
Murata Power Solutions Inc. MEV1D0509DC	19.7 mm	0.28 "	10 mm	0.78 "	0.39 "	7 mm	ITE (Commercial)	85 °C	-40 °C	3000 V	4.5 V	9 V	-9 V	Through Hole	14-DIP Module, 6 Leads	87 %	2	5.5 V			Isolated Module
Murata Power Solutions Inc. MEV1D0515SC	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	ITE (Commercial)	85 °C	-40 °C	3000 V	4.5 V	15 V	-15 V	Through Hole	7-SIP Module, 5 Leads	88 %	2	5.5 V		33 mA	Isolated Module
Murata Power Solutions Inc. MEV1D0512SC	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	ITE (Commercial)	85 °C	-40 °C	3000 V	4.5 V	12 V	-12 V	Through Hole	7-SIP Module, 5 Leads	87.5 %	2	5.5 V			Isolated Module	42 mA	42 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 4.5V - 5.5V Input
