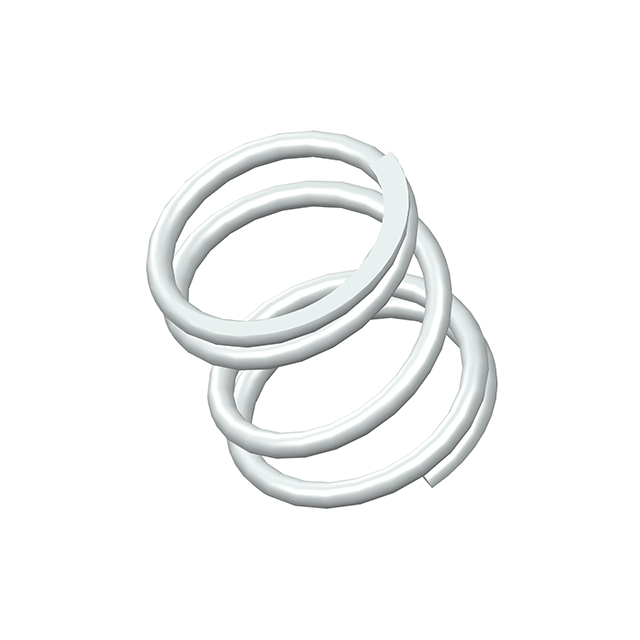

71991SCS
ActiveCentury Spring Corp
COMP O= .720,L= .75,W= .068
71991SCS
ActiveCentury Spring Corp
COMP O= .720,L= .75,W= .068
Description
General part information
71991SCS
COMP O= .720,L= .75,W= .068
Technical Specifications
Parameters and characteristics for this part
| Specification | 71991SCS |
|---|---|
| Diameter - Inside | 0.584 in |
| Diameter - Outside | 0.72 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.75 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 42 lbs/in |
| Type | Compression |
| Wire Diameter | 0.068 in |
