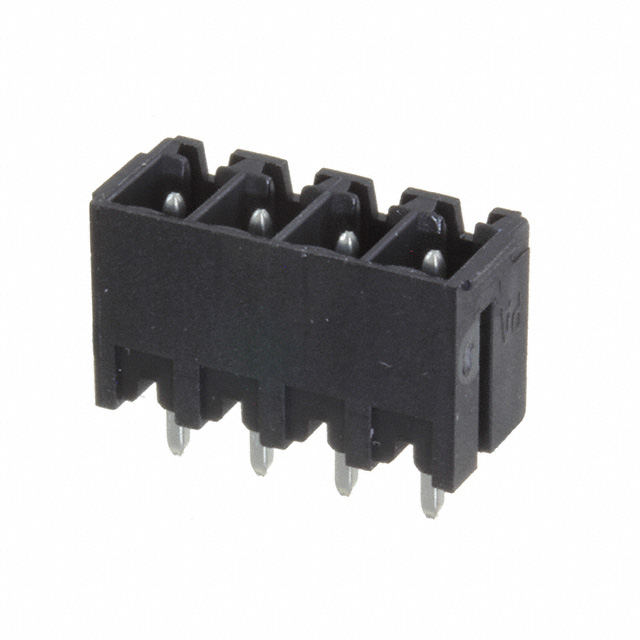

31383104
ActiveMETZ CONNECT USA Inc.
PIN HEADER, VERTICAL, SHROUDED,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
31383104
ActiveMETZ CONNECT USA Inc.
PIN HEADER, VERTICAL, SHROUDED,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 31383104 |
|---|---|
| Color | Black |
| Contact Tail Length | 0.128 in |
| Contact Tail Length | 3.25 mm |
| Current - UL | 8 A |
| Header Orientation | Vertical |
| Insulation Height | 0.362 in |
| Insulation Height | 9.2 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.55 | |
Description
General part information
31383104
4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
