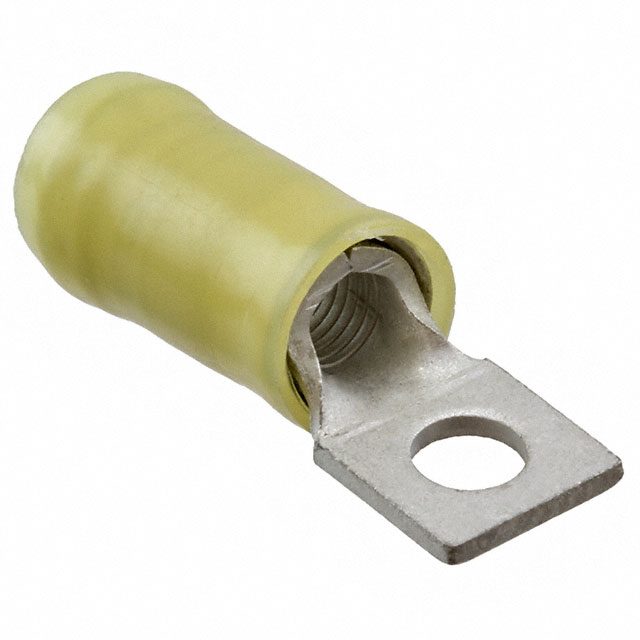

34512

Active

TE Connectivity Raychem Cable Protection

CONN TERM RECT 10-12 AWG #6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

34512

Active

TE Connectivity Raychem Cable Protection

CONN TERM RECT 10-12 AWG #6

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	34512

Color	Yellow
Contact Finish	Tin
Contact Material	Copper
Diameter - Ring ID [diameter]	0.145 in
Diameter - Ring ID [diameter]	3.68 mm
Features	Serrated Termination
Insulation	Insulated
Length - Overall [x]	24.23 mm
Length - Overall [x]	0.954 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Tab Thickness	1.02 mm
Tab Thickness	0.04 in
Terminal Style	Single Stud Hole
Terminal Type	Standard
Termination	Crimp
Width - Outer Edges [y]	7.37 mm
Width - Outer Edges [y]	0.29 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

SOLISTRAND Budget Series

Terminals TERMINAL BUDG R 12-1

Part	Stud/Tab Size	Features	Contact Finish	Insulation	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Length - Overall [x]	Length - Overall	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Contact Material	Stud/Tab Size	Length - Overall [x]	Tab Thickness	Tab Thickness	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Color	Terminal Style	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Termination [x]	Length - Termination [x]	Thickness [custom]	Thickness [custom]	Material - Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]
TE Connectivity Raychem Cable Protection 322799	10 Stud	Brazed Seam Serrated Termination	Nickel	Non-Insulated	Circular	22 AWG	16 AWG	Free Hanging (In-Line)	0.574 in	14.58 mm	0.031 in	0.79 mm	7.14 mm	0.281 in	Crimp	Copper
TE Connectivity Raychem Cable Protection 322763		Brazed Seam	Tin	Non-Insulated	D-Shaped	350 kcmil	300 kcmil	Free Hanging (In-Line)	3.422 in		0.136 in	3.45 mm	39.24 mm	1.545 in	Crimp	Copper	3/8 Stud	86.92 mm
TE Connectivity Raychem Cable Protection 34512	6 Stud	Serrated Termination	Tin	Insulated	Standard	12 AWG	10 AWG	Free Hanging (In-Line)	0.954 in				7.37 mm	0.29 in	Crimp	Copper		24.23 mm	1.02 mm	0.04 in	0.145 in	3.68 mm	Yellow	Single Stud Hole
TE Connectivity Raychem Cable Protection 51875-1	6 Stud	Serrated Termination	Tin	Non-Insulated	Flanged	26 AWG	22 AWG	Free Hanging (In-Line)	0.471 in				6.35 mm	0.25 "	Crimp	Copper		11.96 mm							0.203 in	5.16 mm	0.135 "	3.43 mm	3.68 mm	0.145 in
TE Connectivity Raychem Cable Protection 33718	10 Stud	Heavy Duty Serrated Termination	Tin	Non-Insulated	Circular			Free Hanging (In-Line)	0.723 "		0.048 in	1.22 mm			Crimp	Copper		18.36 mm													0.343 in	8.71 mm
TE Connectivity Raychem Cable Protection 322776	6 Stud	Serrated Termination	Tin	Non-Insulated	Flanged	22 AWG	16 AWG	Free Hanging (In-Line)	0.514 in				6.35 mm	0.25 "	Crimp	Copper		13.06 mm							0.203 in	5.16 mm			3.68 mm	0.145 in			0.181 in	4.6 mm
TE Connectivity Raychem Cable Protection 322768	10 Stud		Tin	Non-Insulated	Circular	22 AWG	16 AWG	Free Hanging (In-Line) Right Angle			0.031 in	0.79 mm			Crimp	Copper
TE Connectivity Raychem Cable Protection 32860	10 Stud	Serrated Termination	Tin	Non-Insulated	Circular	26 AWG	22 AWG	Free Hanging (In-Line)	0.544 in				6.35 mm	0.25 "	Crimp	Copper		13.82 mm																	0.46 mm	0.018 in
TE Connectivity Raychem Cable Protection 31425	2 Stud	Serrated Termination	Tin	Non-Insulated	Circular	26 AWG	22 AWG	Free Hanging (In-Line)	0.329 in	8.36 mm			3.56 mm	0.14 in	Crimp	Copper																			0.46 mm	0.018 in
TE Connectivity Raychem Cable Protection 328657	2 Stud	Serrated Termination	Tin	Insulated	Circular	22 AWG	16 AWG	Free Hanging (In-Line)	0.672 "	17.07 mm	0.031 in	0.79 mm			Crimp	Copper							Red								0.218 in	5.54 mm					Nylon Polyamide (PA)	2.03 mm	3.18 mm	0.125 "	0.08 in
