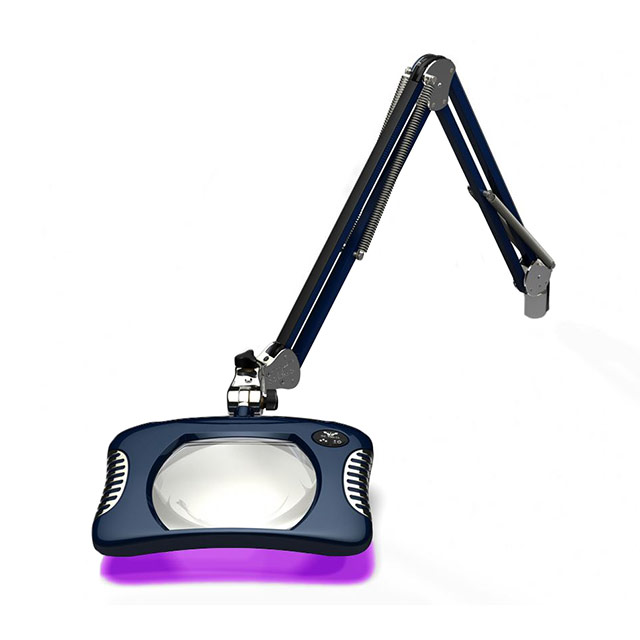

82400-4-UV-SB
ActiveO.C. White Co.
LAMP MAGNIFIER UV LED 43"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
82400-4-UV-SB
ActiveO.C. White Co.
LAMP MAGNIFIER UV LED 43"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82400-4-UV-SB | 82400 Series |
|---|---|---|
| Arm [x] | 43 in | 43 in |
| Arm [x] | 1092.2 mm | 1092.2 mm |
| Bulb | 365 nm | 365 nm |
| Bulb | White, UV, LED | LED, White, White, UV, LED |
| Color | Blue | Red, Black, Blue, Green, Silver, White, Dark Gray |
| Cord Length | NEMA 5-15P | NEMA 5-15P |
| Cord Length | 1.83 m | 1.83 m |
| Cord Length | 6 ' | 6 ' |
| Lamp/Magnifier Type | Lamp, Magnifier | Lamp, Magnifier |
| Lens Style/Size | 4 Diopter | 4 Diopter |
| Lens Style/Size [x] | 177.8 mm | 177.8 mm |
| Lens Style/Size [x] | 7 " | 7 " |
| Lens Style/Size [y] | 5.25 " | 5.25 " |
| Lens Style/Size [y] | 133.35 mm | 133.35 mm |
| Voltage [Max] | 240 V | 240 V |
| Voltage [Min] | 100 V | 100 V |
82400 Series
LAMP MAGNIFIER LED CLAMP
| Part | Bulb | Arm [x] | Arm [x] | Cord Length | Cord Length | Cord Length | Voltage [Max] | Voltage [Min] | Lamp/Magnifier Type | Lens Style/Size [y] | Lens Style/Size [y] | Lens Style/Size [x] | Lens Style/Size | Lens Style/Size [x] | Color | Bulb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O.C. White Co. 82400-4-BO | LED, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | ||
O.C. White Co. 82400-4-BR | LED, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | Red | |
O.C. White Co. 82400-4-B | LED, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | Black | |
O.C. White Co. 82400-4-SB | LED, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | Blue | |
O.C. White Co. 82400-4-UV-B | LED, UV, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | Black | 365 nm |
O.C. White Co. 82400-4-RG | LED, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | Green | |
O.C. White Co. 82400-4-UV-SB | LED, UV, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | Blue | 365 nm |
O.C. White Co. 82400-4-S | LED, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | Silver | |
O.C. White Co. 82400-4-UV | LED, UV, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | 365 nm | |
O.C. White Co. 82400-4-SW | LED, White | 43 in | 1092.2 mm | NEMA 5-15P | 1.83 m | 6 ' | 240 V | 100 V | Lamp, Magnifier | 5.25 " | 133.35 mm | 177.8 mm | 4 Diopter | 7 " | White |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 699.00 | |
Description
General part information
82400 Series
Lamp, Magnifier 4 Diopter (2x), 7.00" L x 5.25" W (177.80mm x 133.35mm) LED, White, UV, 365nm
