PCL722AS

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PCL722AS	PCL722 Series

Actual Diameter	0.079 "	0.079 "
Actual Diameter	2 mm	2 mm
Body Color	Silver, Black	Silver, Black
Body Material	Copper Alloy	Copper Alloy
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating [custom]	Silver	Silver
Current Rating (Amps)	5 A	5 A
Features	Thread Lock, Mounting Hardware	Thread Lock, Mounting Hardware
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Includes	1 Washer, 1 O-Ring, 1 Nut, 1 Connector	1 Washer, 1 O-Ring, 1 Nut, 1 Connector
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "	0.079 - 0.217 in
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm	2 - 5.5 mm
Ingress Protection	IP68	IP68
Internal Switch(s)	Single Switch, Normally Closed	Single Switch, Normally Closed
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Shielding	Unshielded	Unshielded
Termination	Solder	Solder, Solder Eyelet(s)
Thread Size	7/16"-32	7/16"-32, 5/16"-32
Voltage - Rated	30 V	30 V
Voltage - Rated	-	48 VDC

CONN PWR JACK 2X5.5MM SOLDER

Part	Body Material	Internal Switch(s)	Contact Material - Plating [custom]	Mounting Feature	Gender	Connector Type	Voltage - Rated	Ingress Protection	Shielding	Contact Material	Body Color	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Termination	Includes	Thread Size	Number of Positions/Contacts	Mounting Type	Features	Actual Diameter	Actual Diameter	Housing Material	Current Rating (Amps)	Voltage - Rated [custom]
Switchcraft Inc. PCL722AS	Copper Alloy	Normally Closed, Single Switch	Silver	Bulkhead - Front Side Nut	Male	Jack	30 V	IP68	Unshielded	Copper Alloy	Black, Silver	0.079 in, 0.217 "	2 mm, 5.5 mm	Solder	1 Connector, 1 Nut, 1 O-Ring, 1 Washer	7/16"-32	2 Conductors, 3 Conductors	Panel Mount, Through Hole	Mounting Hardware, Thread Lock	0.079 "	2 mm	Thermoplastic	5 A
Switchcraft Inc. PCL722A	Copper Alloy	Normally Closed, Single Switch	Silver	Bulkhead - Front Side Nut	Male	Jack			Unshielded	Copper Alloy	Black, Silver			Solder Eyelet(s)	1 Connector, 1 Nut, 1 O-Ring, 1 Washer	5/16"-32	2 Conductors, 3 Conductors	Through Hole	Mounting Hardware, Thread Lock			Thermoplastic	5 A	48 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

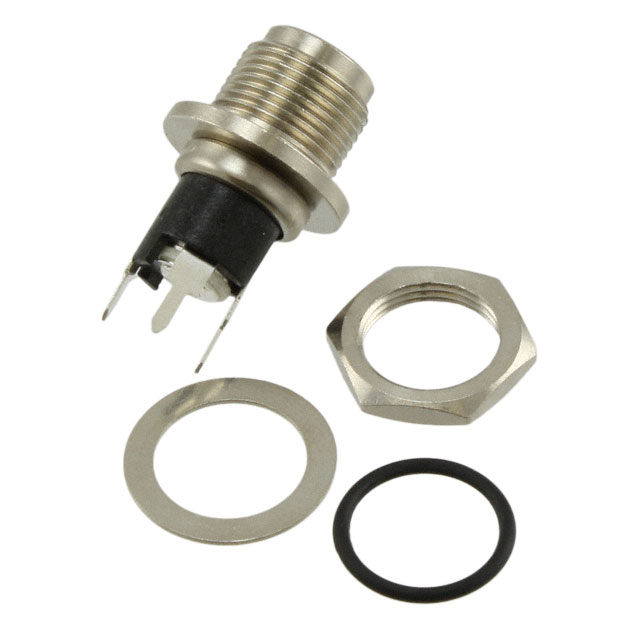

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount, Through Hole
