5-87191-2
ActiveTE Connectivity AMP Connectors

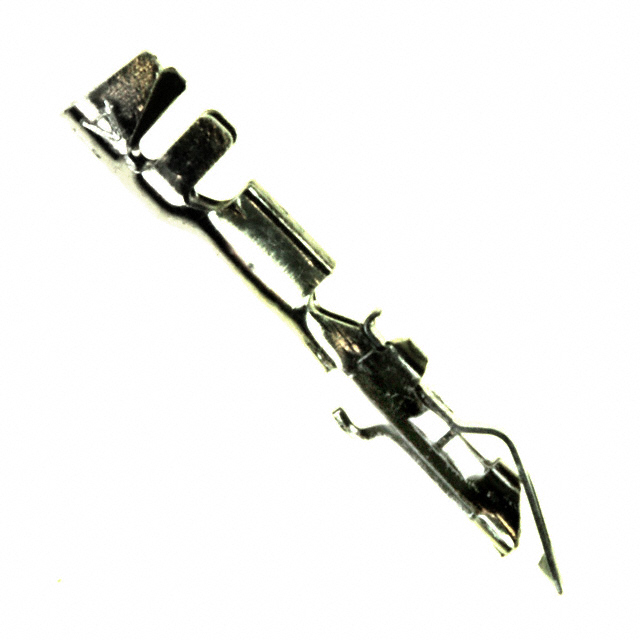

CONN SOCKET 28-30AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-87191-2
ActiveTE Connectivity AMP Connectors
CONN SOCKET 28-30AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-87191-2 | 87191 Series |
|---|---|---|
| Contact Finish | Tin | Tin-Lead, Tin, Gold |
| Contact Finish Thickness | 2.54 µm | 0.76 - 2.54 µm |
| Contact Finish Thickness | 100 µin | 30 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 27.5 AWG | 27.5 AWG |
87191 Series
CONN SOCKET 28-30AWG CRIMP TIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Contact Termination |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87191-2 | 2.54 µm | 100 µin | Socket | 30 AWG | 27.5 AWG | Tin-Lead | Crimp |
TE Connectivity AMP Connectors 5-87191-2 | 2.54 µm | 100 µin | Socket | 30 AWG | 27.5 AWG | Tin | Crimp |
TE Connectivity AMP Connectors 87191-1 | 0.76 Ám | 30 Áin | Socket | 30 AWG | 27.5 AWG | Gold | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.83 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.51 | |||
| 3000 | $ 0.48 | |||
Description
General part information
87191 Series
Socket Contact Tin 28-30 AWG Crimp
