SK36

Active

Surge

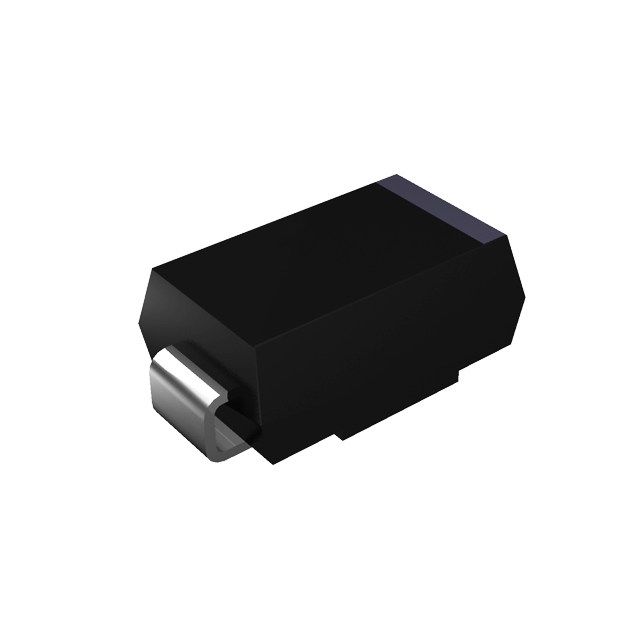

DIODE SCHOTTKY 60V 3A DO214AB

Search across all available documentation for this part.

Active

Surge

DIODE SCHOTTKY 60V 3A DO214AB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SK36	SK36 Series

Capacitance @ Vr, F	250 pF	250 pF
Current - Average Rectified (Io)	3 A	3 A
Current - Reverse Leakage @ Vr	150 µA	150 - 200 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	SMC, DO-214AB	DO-214AC, SMA, SMC, DO-214AB, SMB, DO-214AA
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	DO-214AB (SMC)	DO-214AC (SMA), DO-214AB (SMC), DO-214AA
Supplier Device Package	-	SMB
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V	60 V
Voltage - Forward (Vf) (Max) @ If	700 mV	700 mV

DIODE SCHOTTKY 60V 3A DO214AC

Part	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Technology	Mounting Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Speed	Current - Reverse Leakage @ Vr	Supplier Device Package
Surge SK36A	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC, SMA	Schottky	Surface Mount	3 A	700 mV	60 V	250 pF	200 mA, 500 ns	150 µA
Surge SK36	DO-214AB (SMC)	150 °C	-55 °C	DO-214AB, SMC	Schottky	Surface Mount	3 A	700 mV	60 V	250 pF	200 mA, 500 ns	150 µA
Surge SK36B	DO-214AA	150 °C	-55 °C	DO-214AA, SMB	Schottky	Surface Mount	3 A	700 mV	60 V	250 pF	200 mA, 500 ns	200 µA	SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 60 V 3A Surface Mount DO-214AB (SMC)
