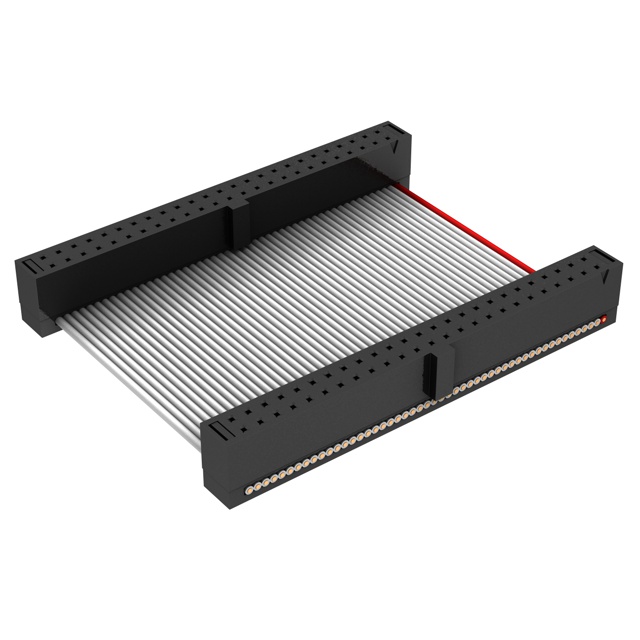

FFSD-25-D-07.28-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-25-D-07.28-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-25-D-07.28-01-N

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-25 Series

...

Part	Features	Cable Termination	Number of Positions	Pitch - Connector	Pitch - Connector	Length	Length	Pitch - Cable [x]	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shielding	Contact Finish	Connector Type	Length [x]	Length [x]	Length [x]
Samtec Inc. FFSD-25-D-17.25-01-N	Polarizing Key	IDC	50	0.05 in	1.27 mm	438.15 mm	1.44 ft	0.025 in	0.64 mm	10 Áin	0.25 Ám	2	Unshielded	Gold	Socket to Socket
Samtec Inc. FFSD-25-D-39.37-01-N-RW-R	Polarizing Key Reverse Wiring	IDC	50	0.05 in	1.27 mm			0.025 in	0.64 mm	10 Áin	0.25 Ám	2	Unshielded	Gold	Socket to Socket Reversed	1 m	3.28 ft
Samtec Inc. FFSD-25-S-15.90-01-N	Polarizing Key	IDC	50	0.05 in	1.27 mm			0.025 in	0.64 mm	10 Áin	0.25 Ám	2	Unshielded	Gold	Socket to Cable	403.86 mm	1.32 ft
Samtec Inc. FFSD-25-D-18.00-01-N-D09	Polarizing Key Reverse Wiring	IDC	50	0.05 in	1.27 mm			0.025 in	0.64 mm	10 Áin	0.25 Ám	2	Unshielded	Gold	Socket to Socket (3)	457.2 mm	1.5 ft
Samtec Inc. FFSD-25-D-20.00-01-F-N	Polarizing Key	IDC	50	0.05 in	1.27 mm	508 mm	1.67 ft	0.025 in	0.64 mm	3 Áin	0.076 Ám	2	Unshielded	Gold	Socket to Socket
Samtec Inc. FFSD-25-D-17.70-01-N	Polarizing Key	IDC	50	0.05 in	1.27 mm			0.025 in	0.64 mm	10 Áin	0.25 Ám	2	Unshielded	Gold	Socket to Socket
Samtec Inc. FFSD-25-D-61.00-01-N-R	Polarizing Key Reverse Wiring	IDC	50	0.05 in	1.27 mm	1.55 m	5.08 '	0.025 in	0.64 mm	10 Áin	0.25 Ám	2	Unshielded	Gold	Socket to Socket Reversed
Samtec Inc. FFSD-25-D-07.28-01-N	Polarizing Key	IDC	50	0.05 in	1.27 mm			0.025 in	0.64 mm	10 Áin	0.25 Ám	2	Unshielded	Gold	Socket to Socket
Samtec Inc. FFSD-25-D-27.56-01-N	Polarizing Key	IDC	50	0.05 in	1.27 mm	700.02 mm	2.3 ft	0.025 in	0.64 mm	10 Áin	0.25 Ám	2	Unshielded	Gold	Socket to Socket
Samtec Inc. FFSD-25-D-11.82-01-N	Polarizing Key	IDC	50	0.05 in	1.27 mm			0.025 in	0.64 mm	10 Áin	0.25 Ám	2	Unshielded	Gold	Socket to Socket	300.23 mm	0.985 ft	11.82 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.96

Description

General part information

FFSD-25 Series

50 Position Cable Assembly Rectangular Socket to Socket 0.607' (184.91mm, 7.28")

Documents

Technical documentation and resources
