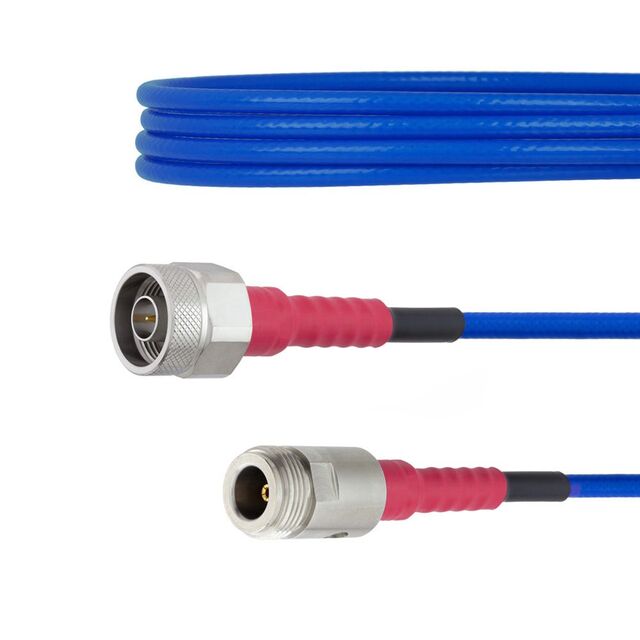

Specification	FMTC104-24

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Outer Diameter	0.8 mm
Cable Type	Coaxial Cable, OD Coaxial Cable, mm OD Coaxial Cable
Cable Type Size	0.8 mm, 0.8
Color	Blue
Connector Impedance	50 Ohms
Frequency - Max	18 GHz
Length	24 in
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Overall Impedance	50 Ohms
Style	N-Type
