FMCA2373-48
ActiveFairview Microwave
CBL ASSY 2.2-5PLUG-TYPE NJACK 48
FMCA2373-48
ActiveFairview Microwave
CBL ASSY 2.2-5PLUG-TYPE NJACK 48
Description
General part information
FMCA2373-48

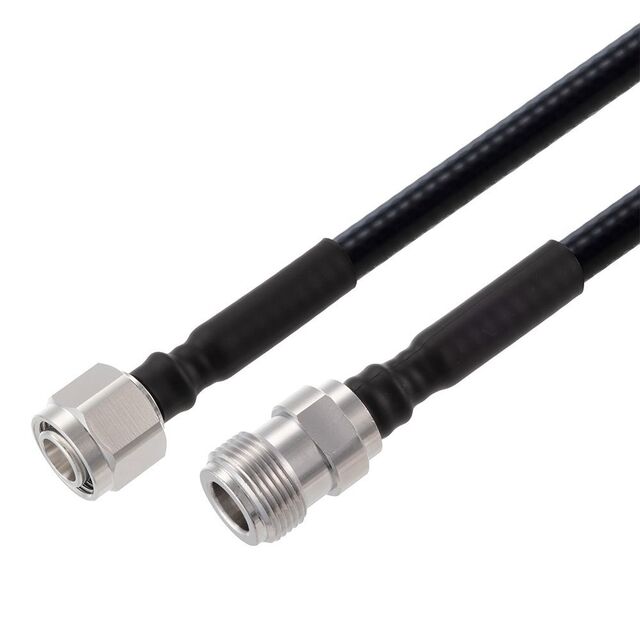

Cable Assembly Coaxial 2.2/5 to N-Type 0.250" Flexible Cable 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2373-48 |
|---|---|
| 1st Connector | 2.2/5 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 2.2 mm |
| 1st Connector Dimension (2) | 5 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.25 " |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 0.25 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.25 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 48 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.2/5 to N-Type |
