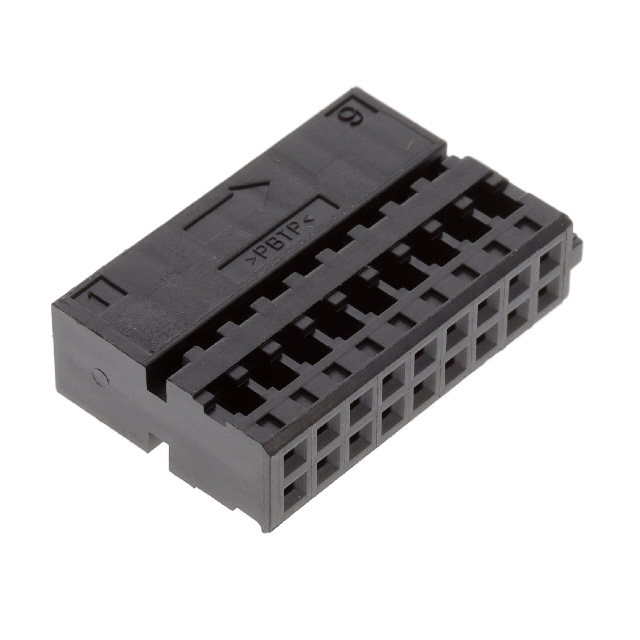

962108-2

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 18POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 18POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	962108-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

CONN RCPT HSG 18POS 2.54MM

Part	Contact Termination	Note	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Color	Row Spacing [x]	Row Spacing	Mounting Type
TE Connectivity AMP Connectors 962108-2	Crimp	Contacts Not Included	18	-40 °C	130 °C	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	2	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
