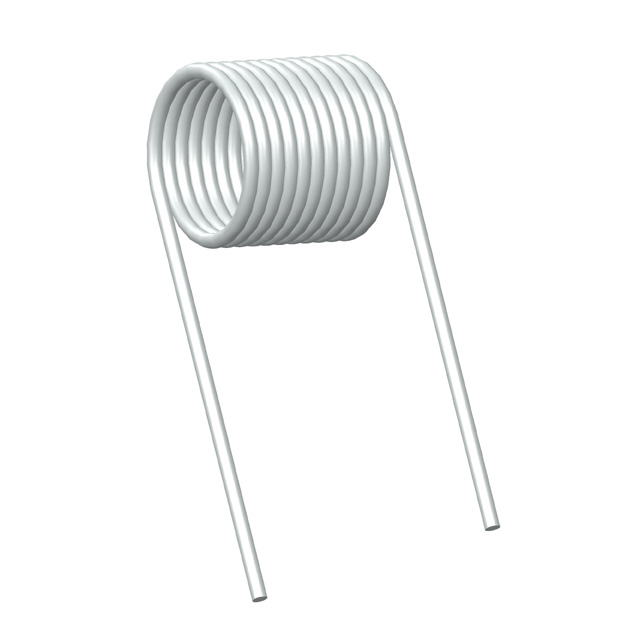

TO-5196RSCS
ActiveCentury Spring Corp
TOR O=.843, W=.070
TO-5196RSCS
ActiveCentury Spring Corp
TOR O=.843, W=.070
Description
General part information
TO-5196RSCS
TOR O=.843, W=.070
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-5196RSCS |
|---|---|
| Deflection Angle | 294 ° |
| Diameter - Outside | 0.84 in |
| Finish | None |
| Leg Length | 2 in |
| Mandrel Diameter | 0.56 in |
| Material | Stainless Steel |
| Number of Coils | 11.5 |
| Wind Direction | Right |
| Wire Diameter | 0.07 in |
