ERCD-060-18.00-TEU-TED-1-D

Active

Samtec Inc.

CBL ASSEM HDR M-M 120POS 18"

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSEM HDR M-M 120POS 18"

Technical Specifications

Parameters and characteristics for this part

Specification	ERCD-060-18.00-TEU-TED-1-D

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Card Edge to Card Edge, Reversed
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	120
Number of Rows	2
Pitch - Cable	0.016 in
Pitch - Cable	0.4 mm
Pitch - Connector	0.8 mm
Pitch - Connector	0.031 in
Shielding	Unshielded

Part	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Rows	Shielding	Connector Type	Number of Positions	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Finish	Length	Length	Length	Length
Samtec Inc. ERCD-060-18.00-TEU-TED-1-D	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge Reversed	120	0.016 in	0.4 mm	457.2 mm	1.5 ft	50 µin	1.27 µm	Blue Ribbon	Gold
Samtec Inc. ERCD-060-12.00-TEU-TED-1-B	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm			50 µin	1.27 µm	Blue Ribbon	Gold	1 ft	304.8 mm
Samtec Inc. ERCD-060-06.00-TEU-TED-1-D	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm			50 µin	1.27 µm	Blue Ribbon	Gold		152.4 mm	6 "	0.5 '
Samtec Inc. ERCD-060-12.00-TEU-TED-1-D	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm			50 µin	1.27 µm	Blue Ribbon	Gold	1 ft	304.8 mm
Samtec Inc. ERCD-060-40.00-TEU-TED-1-B	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm	1.02 m	3.33 '	50 µin	1.27 µm	Blue Ribbon	Gold
Samtec Inc. ERCD-060-06.00-TEU-TED-1-B	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm			50 µin	1.27 µm	Blue Ribbon	Gold		152.4 mm	6 "	0.5 '
Samtec Inc. ERCD-060-40.00-TEU-TED-1-D	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm	1.02 m	3.33 '	50 µin	1.27 µm	Blue Ribbon	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

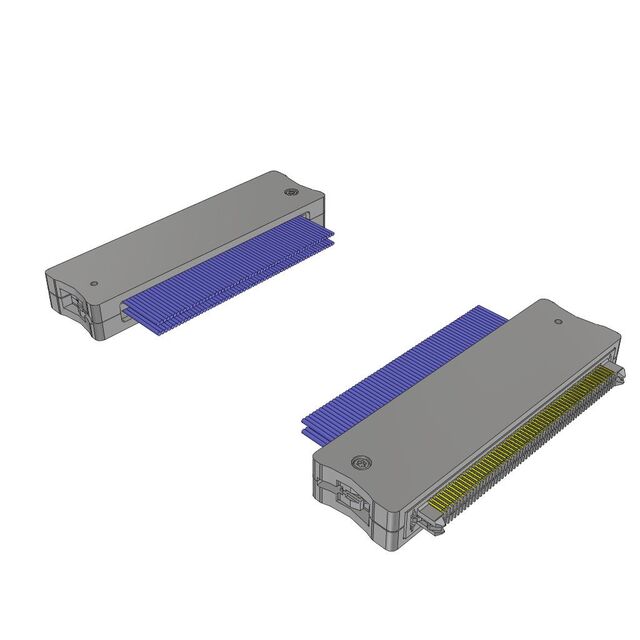

120 Position Cable Assembly Rectangular Card Edge to Card Edge, Reversed 1.50' (457.20mm)
