PPG.M0.5GG.N
ActiveLEMO

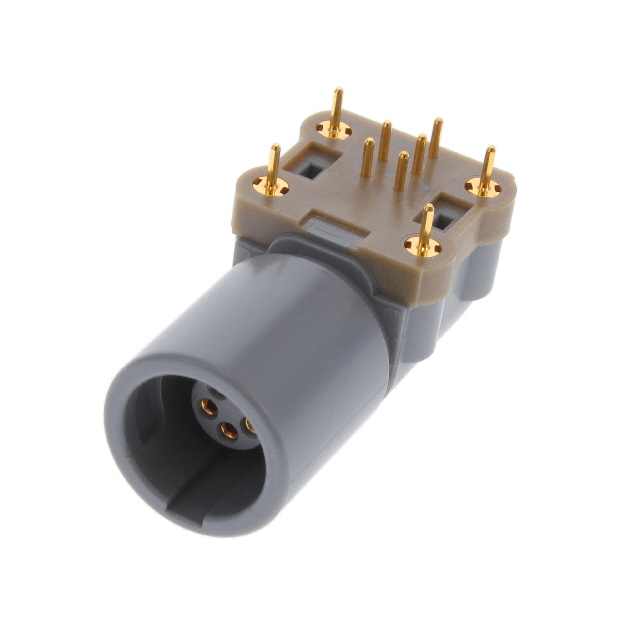

CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PPG.M0.5GG.N
ActiveLEMO
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PPG.M0.5GG.N | PPG.M0 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Polysulfone (PSU) | Polysulfone (PSU) |
| Color | Gray | Black, Gray |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 7 A | 3 - 10 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell, Board Guide | Backshell, Board Guide |
| Ingress Protection | IP50 | IP50 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | - | 2 - 9 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | G | G |
| Primary Material | Plastic | Plastic |
| Shell Material | Polysulfone (PSU) | Polysulfone (PSU) |
| Shell Size - Insert | M05 | M08, M02, M06, M04, M09, M05 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
PPG.M0 Series
CONN RCPT FMALE 8POS GOLD SOLDER
| Part | Number of Positions | Applications | Ingress Protection | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Primary Material | Shielding | Shell Size - Insert | Connector Type | Backshell Material, Plating | Fastening Type | Mounting Type | Current Rating (Amps) | Shell Material | Features | Termination | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PPG.M0.8NG.N | 8 | Automotive, Industrial, Medical, Testing Equipment & Measurement | IP50 | Black | 150 °C | -50 °C | Gold | Plastic | Unshielded | M08 | Receptacle, Female Sockets | Polysulfone (PSU) | Detent Lock, Push-Pull | Through Hole, Right Angle | 5 A | Polysulfone (PSU) | Backshell, Board Guide | Solder | G |
LEMO PPG.M0.2GG.N | 2 | Automotive, Industrial, Medical, Testing Equipment & Measurement | IP50 | Gray | 150 °C | -50 °C | Gold | Plastic | Unshielded | M02 | Receptacle, Female Sockets | Polysulfone (PSU) | Detent Lock, Push-Pull | Through Hole, Right Angle | 10 A | Polysulfone (PSU) | Backshell, Board Guide | Solder | G |
LEMO PPG.M0.6GG.N | 6 | Automotive, Industrial, Medical, Testing Equipment & Measurement | IP50 | Gray | 150 °C | -50 °C | Gold | Plastic | Unshielded | M06 | Receptacle, Female Sockets | Polysulfone (PSU) | Detent Lock, Push-Pull | Through Hole, Right Angle | 6 A | Polysulfone (PSU) | Backshell, Board Guide | Solder | G |
LEMO PPG.M0.7GG.N | 7 | Automotive, Industrial, Medical, Testing Equipment & Measurement | IP50 | Gray | 150 °C | -50 °C | Gold | Plastic | Unshielded | Receptacle, Female Sockets | Polysulfone (PSU) | Detent Lock, Push-Pull | Through Hole, Right Angle | 5 A | Polysulfone (PSU) | Backshell, Board Guide | Solder | G | |
LEMO PPG.M0.4GG.N | 4 | Automotive, Industrial, Medical, Testing Equipment & Measurement | IP50 | Gray | 150 °C | -50 °C | Gold | Plastic | Unshielded | M04 | Receptacle, Female Sockets | Polysulfone (PSU) | Detent Lock, Push-Pull | Through Hole, Right Angle | 8 A | Polysulfone (PSU) | Backshell, Board Guide | Solder | G |
LEMO PPG.M0.9GG.N | 9 | Automotive, Industrial, Medical, Testing Equipment & Measurement | IP50 | Gray | 150 °C | -50 °C | Gold | Plastic | Unshielded | M09 | Receptacle, Female Sockets | Polysulfone (PSU) | Detent Lock, Push-Pull | Through Hole, Right Angle | 3 A | Polysulfone (PSU) | Backshell, Board Guide | Solder | G |
LEMO PPG.M0.6NG.N | 6 | Automotive, Industrial, Medical, Testing Equipment & Measurement | IP50 | Black | 150 °C | -50 °C | Gold | Plastic | Unshielded | M06 | Receptacle, Female Sockets | Polysulfone (PSU) | Detent Lock, Push-Pull | Through Hole, Right Angle | 6 A | Polysulfone (PSU) | Backshell, Board Guide | Solder | G |
LEMO PPG.M0.5GG.N | Automotive, Industrial, Medical, Testing Equipment & Measurement | IP50 | Gray | 150 °C | -50 °C | Gold | Plastic | Unshielded | M05 | Receptacle, Female Sockets | Polysulfone (PSU) | Detent Lock, Push-Pull | Through Hole, Right Angle | 7 A | Polysulfone (PSU) | Backshell, Board Guide | Solder | G |
