1-796692-2
ActiveTE Connectivity AMP Connectors

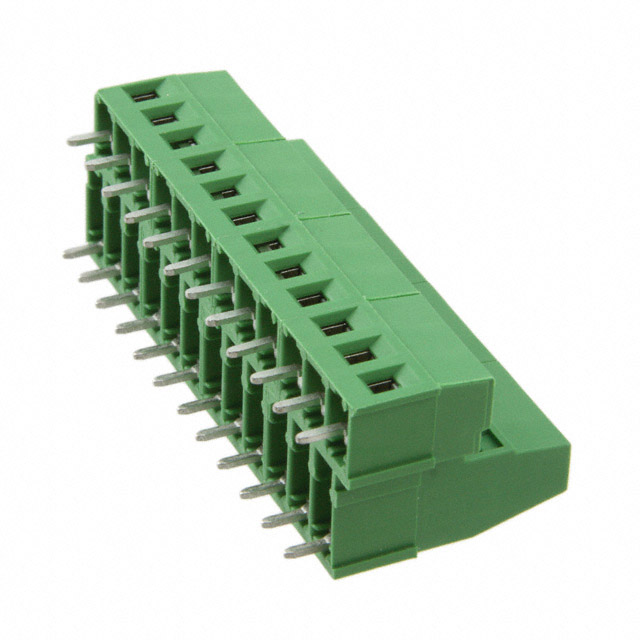

TERM BLK 12P SIDE ENT 5.08MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-796692-2
ActiveTE Connectivity AMP Connectors
TERM BLK 12P SIDE ENT 5.08MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-796692-2 | 796692 Series |
|---|---|---|
| Clamp Material - Plating | Brass - Tin Plated | Brass - Tin Plated |
| Color | Green | Green |
| Contact Material - Plating [custom] | Brass - Tin Plated | Brass - Tin Plated |
| Current | 17.5 A | 17.5 A |
| Features | Interlocking (Side) | Interlocking (Side) |
| Mating Orientation | Horizontal with Board | Horizontal with Board |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 2 | 2 |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Positions Per Level | 12 | 6 - 16 |
| Screw Material - Plating | Brass - Nickel Plated | Brass - Nickel Plated |
| Screw Thread | M3 | M3 |
| Torque - Screw | 0.79 Nm | 0.79 Nm |
| Torque - Screw | 7 Lb-In | 7 Lb-In |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
796692 Series
TERM BLK 6P SIDE ENT 5.08MM PCB
| Part | Pitch [x] | Pitch [x] | Wire Termination | Number of Levels | Voltage | Screw Material - Plating | Color | Features | Contact Material - Plating [custom] | Mounting Type | Current | Mating Orientation | Positions Per Level | Torque - Screw | Torque - Screw | Wire Gauge [Max] | Wire Gauge [Min] | Clamp Material - Plating | Screw Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796692-6 | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 2 | 300 V | Brass - Nickel Plated | Green | Interlocking (Side) | Brass - Tin Plated | Through Hole | 17.5 A | Horizontal with Board | 6 | 0.79 Nm | 7 Lb-In | 30 AWG | 12 AWG | Brass - Tin Plated | M3 |
TE Connectivity AMP Connectors 796692-7 | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 2 | 300 V | Brass - Nickel Plated | Green | Interlocking (Side) | Brass - Tin Plated | Through Hole | 17.5 A | Horizontal with Board | 7 | 0.79 Nm | 7 Lb-In | 30 AWG | 12 AWG | Brass - Tin Plated | M3 |
TE Connectivity AMP Connectors 1-796692-6 | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 2 | 300 V | Brass - Nickel Plated | Green | Interlocking (Side) | Brass - Tin Plated | Through Hole | 17.5 A | Horizontal with Board | 16 | 0.79 Nm | 7 Lb-In | 30 AWG | 12 AWG | Brass - Tin Plated | M3 |
TE Connectivity AMP Connectors 1-796692-2 | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 2 | 300 V | Brass - Nickel Plated | Green | Interlocking (Side) | Brass - Tin Plated | Through Hole | 17.5 A | Horizontal with Board | 12 | 0.79 Nm | 7 Lb-In | 30 AWG | 12 AWG | Brass - Tin Plated | M3 |
TE Connectivity AMP Connectors 796692-8 | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 2 | 300 V | Brass - Nickel Plated | Green | Interlocking (Side) | Brass - Tin Plated | Through Hole | 17.5 A | Horizontal with Board | 8 | 0.79 Nm | 7 Lb-In | 30 AWG | 12 AWG | Brass - Tin Plated | M3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.92 | |
| 10 | $ 22.31 | |||
| 25 | $ 20.71 | |||
| 60 | $ 19.29 | |||
| 120 | $ 18.24 | |||
| 300 | $ 16.94 | |||
| 540 | $ 16.62 | |||
Description
General part information
796692 Series
12 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
