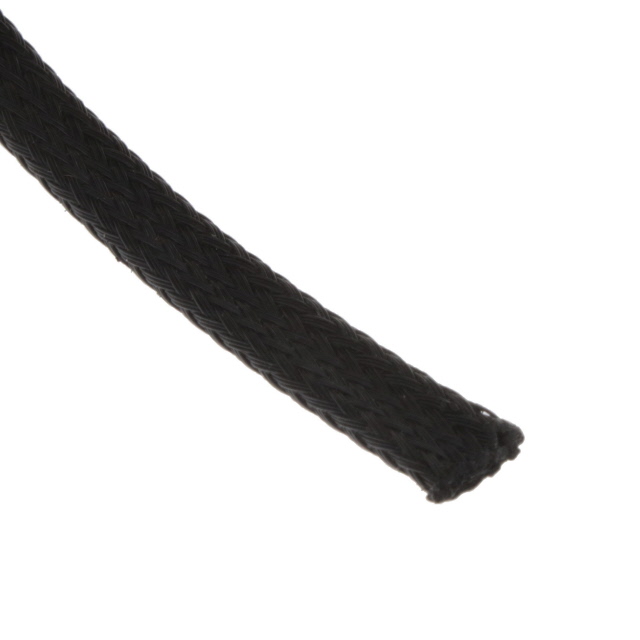

PTP0.38BK125
ActiveTechflex
EXPAND SLEEVE 0.188" X 125' BLK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTP0.38BK125
ActiveTechflex
EXPAND SLEEVE 0.188" X 125' BLK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTP0.38BK125 |
|---|---|
| Abrasion Protection | Abrasion Resistant, Fray Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 15.88 mm |
| Diameter - Inside, Expanded [diameter] | 0.625 in |
| Diameter - Inside, Non-Expanded [diameter] | 4.78 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.188 in |
| Environment Protection | UV Resistant |
| Length | 125 ft |
| Length | 38.1 m |
| Material | Polyethylene Terephthalate (PET) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 0.024 in |
| Wall Thickness | 0.61 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 48.98 | |
| 5 | $ 45.92 | |||
| 10 | $ 42.86 | |||
| 25 | $ 40.72 | |||
| 50 | $ 39.80 | |||
| 100 | $ 38.88 | |||
Description
General part information
PTP0.38BK125
Sleeve X 125' (38.10m) Black
