Description
General part information
BOS00K1

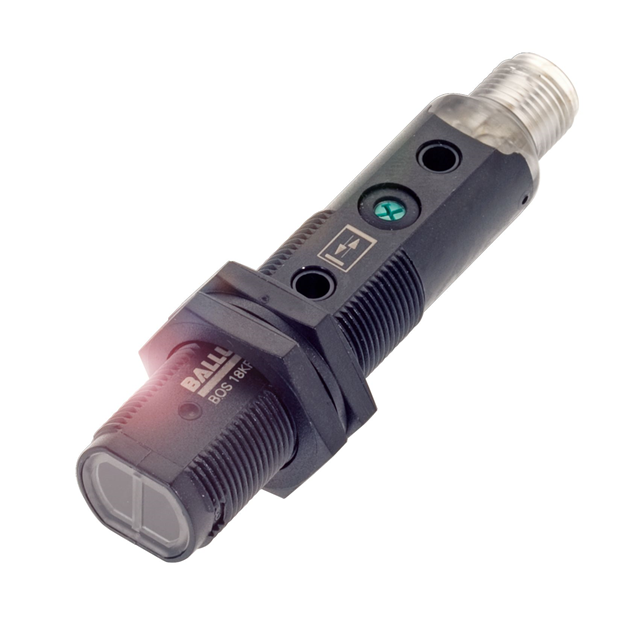

Diffuse Optical Sensor 27.559" (700mm) PNP-NO
Technical Specifications
Parameters and characteristics for this part
| Specification | BOS00K1 |
|---|---|
| Adjustment Angle | 270 ° |
| Adjustment Type | Potentiometer, Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 880 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP-NO |
| Sensing Distance | 27.559 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
