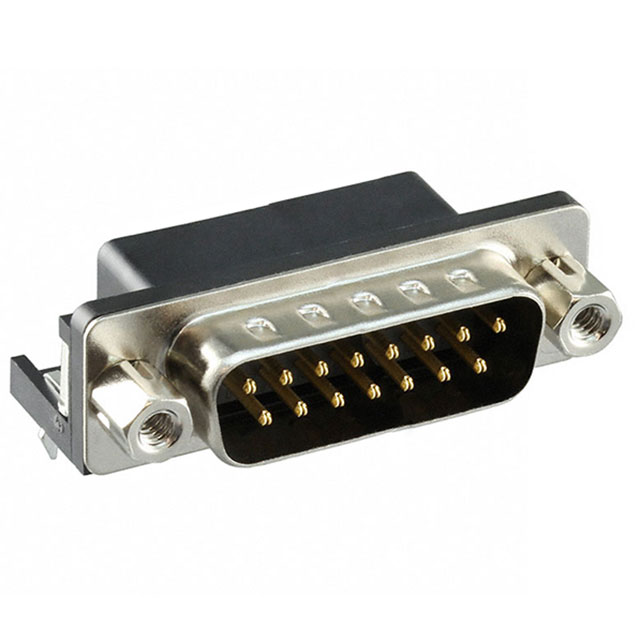

XM2C-1542-112L

Obsolete

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 15POS R/A SLDR

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	XM2C-1542-112L

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Shielded, Grounding Indents
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	300 VDC

Part	Shell Size, Connector Layout	Shell Material, Finish	Dielectric Material	Current Rating (Amps)	Termination	Voltage Rating	Features	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Number of Rows	Contact Finish	Connector Style	Number of Positions	Color	Contact Type	Connector Type	Material Flammability Rating	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Omron Electronics Inc-EMC Div XM2C-1542-112L	2	Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Solder	300 VDC	Board Lock Grounding Indents Shielded	Through Hole Right Angle	Brass	-25 °C	105 ░C	Flash	2	Gold	D-Sub	15	Black	Signal	Male Pins Plug	UL94 V-0
Omron Electronics Inc-EMC Div XM2C-0942-502L		Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Solder	300 VDC	Grounding Indents Shielded	Through Hole Right Angle	Brass	-25 °C	105 ░C	Flash	2	Gold	D-Sub	9	Black	Signal	Male Pins Plug	UL94 V-0	Housing/Shell (Unthreaded)	DE E	1
Omron Electronics Inc-EMC Div XM2C-0942-112L		Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Solder	300 VDC	Board Lock Grounding Indents Shielded	Through Hole Right Angle	Brass	-25 °C	105 ░C	Flash	2	Gold	D-Sub	9	Black	Signal	Male Pins Plug	UL94 V-0		DE E	1
