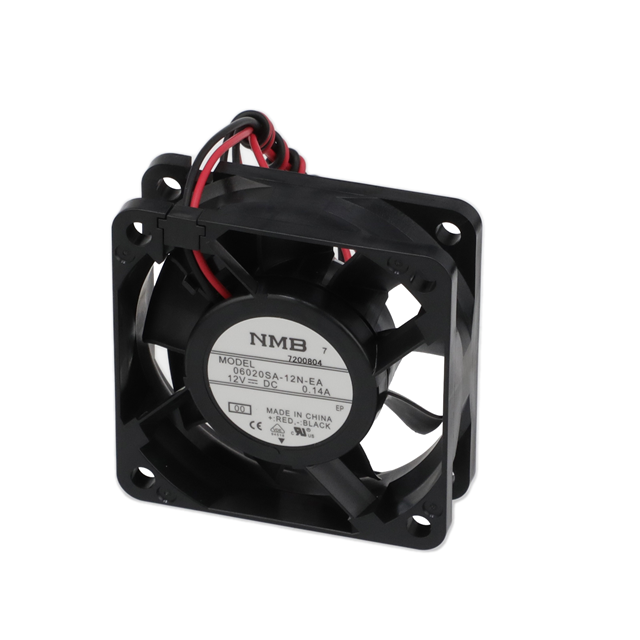

06020SA-12N-EA-00
ActiveNMB TECHNOLOGIES
AXIAL FAN, 60MM, 12VDC, 20.5CFM, 30.5DB ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
06020SA-12N-EA-00
ActiveNMB TECHNOLOGIES
AXIAL FAN, 60MM, 12VDC, 20.5CFM, 30.5DB ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 06020SA-12N-EA-00 |
|---|---|
| Air Flow | 20.5 CFM |
| Air Flow | 0.574 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.09 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 30.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.08 W |
| RPM | 4400 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 0.21 in H2O |
| Static Pressure | 52.3 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
06020SA-12N-EA-00
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 20.5 CFM (0.574m³/min) 2 Wire Leads
