MSW00A16-8S-SR

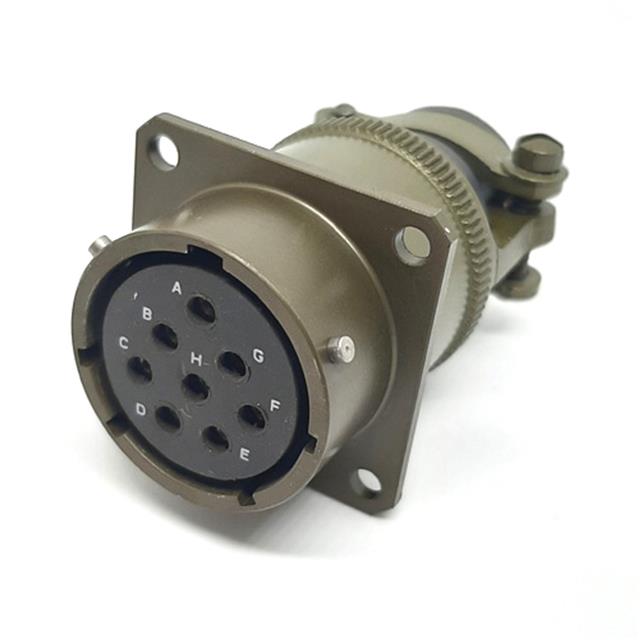

8 Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW00A16-8S-SR |
|---|---|
| Applications | Military |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Cadmium |
| Current Rating | 13 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 16 mm |
| Shell Size - Insert Width | 8 mm |
| Termination | Solder |
| Voltage Rating | 800 V |
