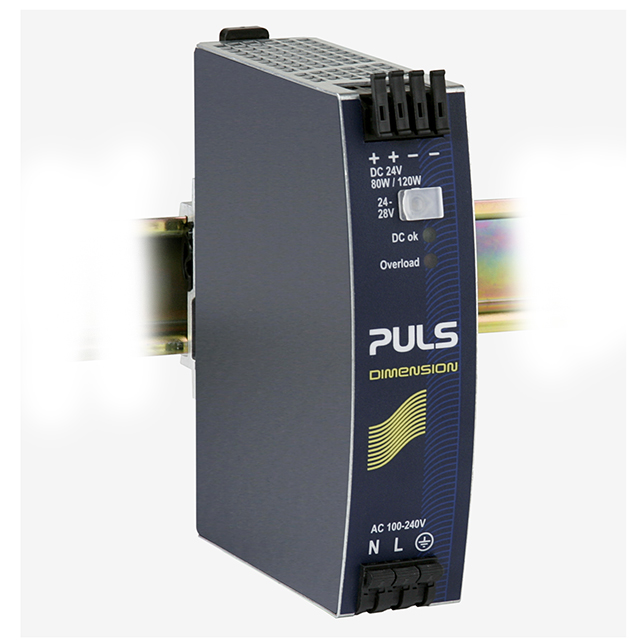

QS3.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 80W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 80W

Technical Specifications

Parameters and characteristics for this part

Specification	QS3.241

AC Voltage - Input [Max]	276 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	SEMI, DNV GL, CSA, EAC, UL, ABS, IEC
Current - Output (Max) [Max]	3.33 A
Efficiency	90 %
Features	Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	80 W
Size / Dimension [x]	102 mm
Size / Dimension [x]	4.02 in
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Standard Number	61010-2-201, Class I Div 2, 508, F47, 60950-1
Voltage - Isolation	500 V
Voltage - Output 1	24 V

AC/DC DIN RAIL SUPPLY 24V 80W

Part	Power (Watts)	Efficiency	Voltage - Isolation	Input Type	Standard Number	Approval Agency	Voltage - Output 1	Current - Output (Max) [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Features	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]
PULS, LP QS3.241	80 W	90 %	500 V	AC	508, 60950-1, 61010-2-201, Class I Div 2, F47	ABS, CSA, DNV GL, EAC, IEC, SEMI, UL	24 V	3.33 A	1	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	ITE (Commercial)	Adjustable Output, Load Sharing	-10 °C	70 °C	276 VAC	85 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 238.50

General part information

AC/DC DIN RAIL SUPPLY 24V 80W

Technical documentation and resources

No documents available
