FMSW1102
ActiveFairview Microwave

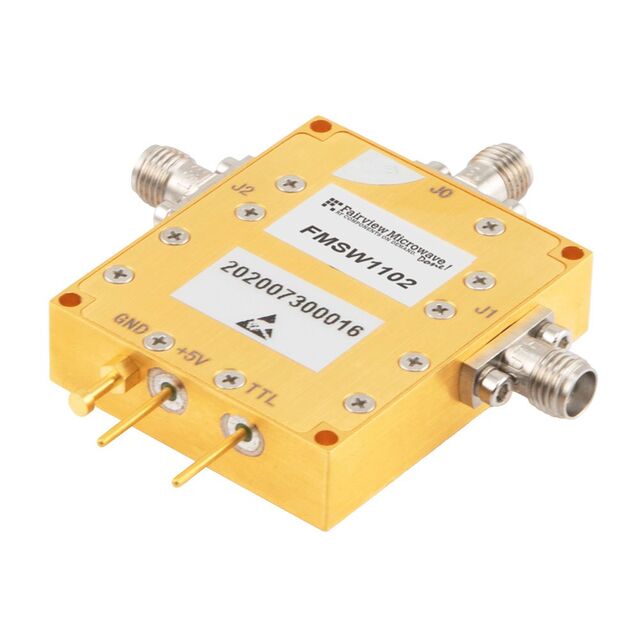

PIN DIODE SWITCH SMA SPDT 18GHZ
FMSW1102
ActiveFairview Microwave
PIN DIODE SWITCH SMA SPDT 18GHZ
Description
General part information
FMSW1102
RF Switch IC VSAT SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW1102 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 18 GHz |
| Frequency Range (Min) | 0 Hz |
| IIP3 | 55 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 1.7 dB |
| Isolation | 25 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -45 °C |
| RF Type | VSAT |
| Test Frequency | 18 GHz |
| Topology | Reflective |
| Voltage - Supply | 5 VDC |
