UPD78F0534GB(T)-UEU-AT

Active

Renesas Electronics Corporation

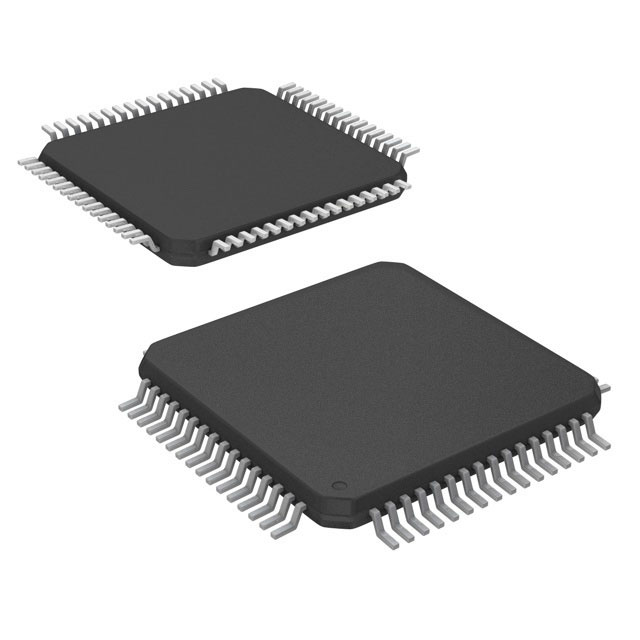

IC MCU 8BIT 48KB FLASH 64LQFP

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC MCU 8BIT 48KB FLASH 64LQFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

The 78K0/Kx2+ Group is supported only for customers who have already adopted these products. The RL78/G13 Group is recommended for new designs.

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Compact, Low-power 8-bit Microcontrollers for General Purpose Applications (Non Promotion)

Part	Peripherals	Speed	Connectivity	Program Memory Size	Core Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Data Converters	Supplier Device Package	Oscillator Type	Core Processor	Package / Case	Number of I/O	RAM Size	Program Memory Type
Renesas Electronics Corporation UPD78F0534GB(T)-UEU-AT	LVD, PWM, WDT	20 MHz	3-Wire, I2C, LINbus, UART/USART	48 KB	8-Bit	1.8 V	5.5 V	85 °C	-40 °C	Surface Mount	A/D 8x10b SAR	64-LFQFP (10x10)	External, Internal	78K/0	64-LQFP	54	2K x 8	FLASH
Renesas Electronics Corporation UPD78F0534GB(A)-GAH-E1-QS-AX	LVD, PWM, WDT	20 MHz	3-Wire, I2C, LINbus, UART/USART	48 KB	8-Bit	1.8 V	5.5 V	85 °C	-40 °C	Surface Mount	A/D 8x10b SAR	64-LFQFP (10x10)	External, Internal	78K/0	64-LQFP	54	2K x 8	FLASH
Renesas Electronics Corporation UPD78F0534AGA(S)-HAB-AX	LVD, PWM, WDT	20 MHz	3-Wire, I2C, LINbus, UART/USART	48 KB	8-Bit	1.8 V	5.5 V	85 °C	-40 °C	Surface Mount	A/D 8x10b SAR	64-TFQFP (7x7)	External, Internal	78K/0	64-TQFP	54	2K x 8	FLASH
Renesas Electronics Corporation UPD78F0534GA(S)-9EV-A	LVD, PWM, WDT	20 MHz	3-Wire, I2C, LINbus, UART/USART	48 KB	8-Bit	1.8 V	5.5 V	85 °C	-40 °C	Surface Mount	A/D 8x10b SAR	64-TFQFP (7x7)	External, Internal	78K/0	64-TQFP	54	2K x 8	FLASH
Renesas Electronics Corporation UPD78F0534GB(A)-GAH-AX	LVD, PWM, WDT	20 MHz	3-Wire, I2C, LINbus, UART/USART	48 KB	8-Bit	1.8 V	5.5 V	85 °C	-40 °C	Surface Mount	A/D 8x10b SAR	64-LFQFP (10x10)	External, Internal	78K/0	64-LQFP	54	2K x 8	FLASH
