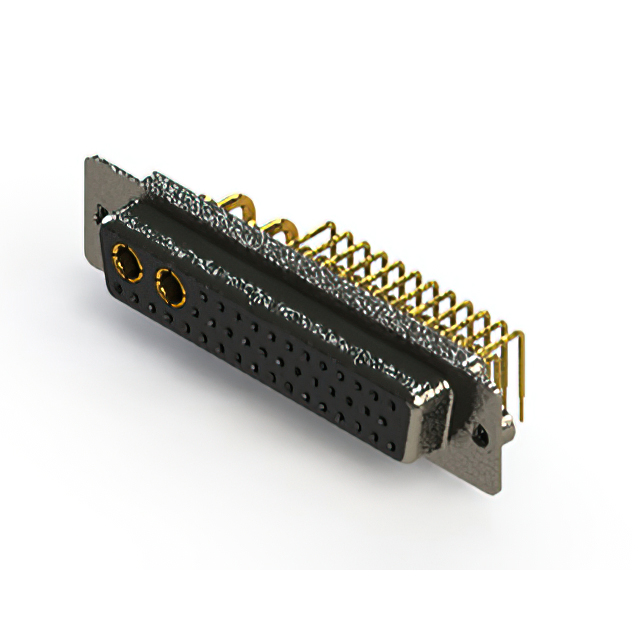

630-43W2240-1T2

Active

EDAC Inc.

CONN D-SUB RCPT 43POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-43W2240-1T2

Active

EDAC Inc.

CONN D-SUB RCPT 43POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-43W2240-1T2

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polyester Thermoplastic
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	2
Number of Positions [custom]	41
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D) - 43W2
Termination	Solder
Voltage Rating	125 VDC

630-43W Series

...

Part	Dielectric Material	Shell Material, Finish	Backset Spacing	Backset Spacing	Number of Positions [custom]	Number of Positions [custom]	Features	Material Flammability Rating	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Contact Type	Termination	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Flange Feature	Contact Material	Number of Rows	Connector Style	Contact Finish	Number of Positions [custom]	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 630-43W2650-3NC	Polyester Thermoplastic	Nickel Plated Steel	9.4 mm	0.37 in	2	41	Mounting Brackets	UL94 V-0	5 A 30 A	125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Signal and Power	Solder	5 (DD D) - 43W2	0.76 Ám	30 Áin	Receptacle Female Sockets	Housing/Shell (M3)	Copper Alloy	3	Combo D-Sub	Gold
EDAC Inc. 630-43W2640-7T4	Polyester Thermoplastic		9.4 mm	0.37 in		41	Mounting Brackets	UL94 V-0		125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Coax Signal	Solder	5 (DD D) - 43W2	0.76 Ám	30 Áin	Receptacle Female Sockets	Housing/Shell (4-40)	Copper Alloy	3	Combo D-Sub	Gold	2
EDAC Inc. 630-43W2640-5N2	Polyester Thermoplastic	Nickel Plated Steel	9.4 mm	0.37 in		41		UL94 V-0		125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Coax Signal	Solder	5 (DD D) - 43W2	0.76 Ám	30 Áin	Receptacle Female Sockets	Housing/Shell (4-40)	Copper Alloy	3	Combo D-Sub	Gold	2
EDAC Inc. 630-43W2640-1N6	Polyester Thermoplastic	Nickel Plated Steel	9.4 mm	0.37 in	2	41		UL94 V-0		125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Signal and Power	Solder	5 (DD D) - 43W2	0.76 Ám	30 Áin	Receptacle Female Sockets	4-40	Copper Alloy	3	Combo D-Sub	Gold		10A 5A
EDAC Inc. 630-43W2640-3TC	Polyester Thermoplastic		9.4 mm	0.37 in	2	41	Mounting Brackets	UL94 V-0	5 A 30 A	125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Signal and Power	Solder	5 (DD D) - 43W2	0.76 Ám	30 Áin	Receptacle Female Sockets	Housing/Shell (M3)	Copper Alloy	3	Combo D-Sub	Gold
EDAC Inc. 630-43W2650-2NA	Polyester Thermoplastic	Nickel Plated Steel	9.4 mm	0.37 in	2	41		UL94 V-0	5 A 20 A	125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Signal and Power	Solder	5 (DD D) - 43W2	0.76 Ám	30 Áin	Receptacle Female Sockets	Board Side (M3)	Copper Alloy	3	Combo D-Sub	Gold
EDAC Inc. 630-43W2240-1T2	Polyester Thermoplastic		9.4 mm	0.37 in	2	41		UL94 V-0		125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Signal and Power	Solder	5 (DD D) - 43W2			Receptacle Female Sockets	Housing/Shell (4-40)	Copper Alloy	3	Combo D-Sub	Gold		10A 5A	Flash
EDAC Inc. 630-43W2250-1TA	Polyester Thermoplastic		9.4 mm	0.37 in	2	41		UL94 V-0		125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Signal and Power	Solder	5 (DD D) - 43W2			Receptacle Female Sockets	Board Side (M3)	Copper Alloy	3	Combo D-Sub	Gold		10A 5A	Flash
EDAC Inc. 630-43W2240-3T4	Polyester Thermoplastic		9.4 mm	0.37 in	2	41	Mounting Brackets	UL94 V-0	5 A 30 A	125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Signal and Power	Solder	5 (DD D) - 43W2			Receptacle Female Sockets	Housing/Shell (4-40)	Copper Alloy	3	Combo D-Sub	Gold			Flash
EDAC Inc. 630-43W2640-2T6	Polyester Thermoplastic		9.4 mm	0.37 in	2	41		UL94 V-0	5 A 20 A	125 VDC	-55 °C	125 °C	Black	Through Hole Right Angle	Signal and Power	Solder	5 (DD D) - 43W2	0.76 Ám	30 Áin	Receptacle Female Sockets	4-40	Copper Alloy	3	Combo D-Sub	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 10.65

Description

General part information

630-43W Series

43 (41 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
