RAD.0S.304.CLL
ActiveLEMO

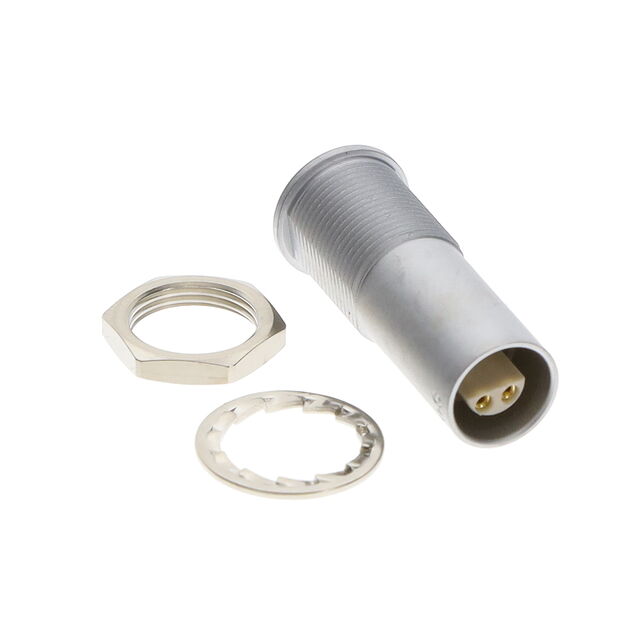

CONN ADPT 4P-4P F/M-F/M PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAD.0S.304.CLL
ActiveLEMO
CONN ADPT 4P-4P F/M-F/M PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RAD.0S.304.CLL | RAD.0S Series |
|---|---|---|
| Adapter Series | - | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 |
| Adapter Type | - | Jack to Jack |
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Center Contact Plating | - | Gold |
| Center Gender | - | Female to Female |
| Connector Style | Standard | Standard |
| Conversion Type | - | Same Series |
| Convert From (Adapter End) | Female Sockets and Male Pins | Female Sockets and Male Pins, NIM-CAMAC CD/N 549 Jack, Female Socket, Female Sockets |
| Convert To (Adapter End) | Female Sockets, Male Pins | Female Sockets, Male Pins |
| Current Rating (Amps) | 7 A | 4 - 10 A |
| Dielectric Material | - | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Mounting Hardware | Mounting Hardware |
| Housing Color | Silver | Silver |
| Housing Finish | Chrome | Chrome |
| Housing Material | Brass | Brass |
| Impedance | - | 50 Ohms |
| Includes | 1 Adapter, 1 Nut, 1 Washer | 1 Adapter, 1 Nut, 1 Washer, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Mating Cycles | - | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut, Bulkhead |
| Number of Positions (Convert From) | 4 | 1 - 4 |
| Number of Positions (Convert To) | 4 | 1 - 4 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation (Convert From) | Keyed | Keyed |
| Orientation (Convert To) | Keyed | Keyed |
| Shell Size - Insert (Convert From) | 304 | 302 - 403 |
| Shell Size - Insert (Convert To) | - | 403 |
| Shell Size - Insert (Convert To) [custom] | 304 | 302 - 304 |
| Shielding | Shielded | Shielded |
| Style | - | Straight |
RAD.0S Series
CONN ADPT 4P-4P F/M-F/M PNL MNT
| Part | Shell Size - Insert (Convert From) | Fastening Type | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Convert To (Adapter End) | Orientation (Convert To) | Convert From (Adapter End) | Ingress Protection | Housing Finish | Includes | Features | Shell Size - Insert (Convert To) [custom] | Current Rating (Amps) | Orientation (Convert From) | Housing Color | Connector Style | Mounting Feature | Number of Positions (Convert To) | Number of Positions (Convert From) | Style | Adapter Series | Dielectric Material | Adapter Type | Conversion Type | Impedance | Body Finish | Body Material | Center Contact Plating | Center Gender | Mating Cycles | Shell Size - Insert (Convert To) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO RAD.0S.304.CLL | 304 | Push-Pull | Brass | -55 °C | 250 °C | Shielded | Female Sockets, Male Pins | Keyed | Female Sockets and Male Pins | IP50 | Chrome | 1 Adapter, 1 Nut, 1 Washer | Mounting Hardware | 304 | 7 A | Keyed | Silver | Standard | Bulkhead - Rear Side Nut | 4 | 4 | ||||||||||||
LEMO RAD.0S.302.CLL | 302 | Push-Pull | Brass | -55 °C | 250 °C | Shielded | Female Sockets, Male Pins | Keyed | Female Sockets and Male Pins | IP50 | Chrome | 1 Adapter, 1 Nut, 1 Washer | Mounting Hardware | 302 | 10 A | Keyed | Silver | Standard | Bulkhead - Rear Side Nut | 2 | 2 | ||||||||||||
LEMO RAD.0S.302.CLM | 302 | Push-Pull | Brass | -55 °C | 250 °C | Shielded | Female Sockets, Male Pins | Keyed | Female Sockets and Male Pins | IP50 | Chrome | 1 Adapter, 1 Nut, 1 Washer | Mounting Hardware | 302 | 10 A | Keyed | Silver | Standard | Bulkhead - Rear Side Nut | 2 | 2 | ||||||||||||
LEMO RAD.0S.303.CLM | 303 | Push-Pull | Brass | -55 °C | 250 °C | Shielded | Female Sockets, Male Pins | Keyed | Female Sockets and Male Pins | IP50 | Chrome | 1 Adapter, 1 Nut, 1 Washer | Mounting Hardware | 303 | 7 A | Keyed | Silver | Standard | Bulkhead - Rear Side Nut | 3 | |||||||||||||
LEMO RAD.0S.250.CLM | Push-Pull | NIM-CAMAC CD/N 549 Jack, Female Socket | IP50 | Bulkhead | Straight | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 | Polyetheretherketone (PEEK) | Jack to Jack | Same Series | 50 Ohms | Chrome | Brass | Gold | Female to Female | |||||||||||||||||||
LEMO RAD.0S.650.CTM | Push-Pull | NIM-CAMAC CD/N 549 Jack, Female Socket | IP50 | Bulkhead | Straight | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 | Polytetrafluoroethylene (PTFE) | Jack to Jack | Same Series | 50 Ohms | Chrome | Brass | Gold | Female to Female | |||||||||||||||||||
LEMO RAD.0S.250.CTM | Push-Pull | -55 °C | 250 °C | NIM-CAMAC CD/N 549 Jack, Female Socket | IP50 | 1 Connector, 1 Lockwasher, 1 Nut | Bulkhead | Straight | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 | Polytetrafluoroethylene (PTFE) | Jack to Jack | Same Series | 50 Ohms | Chrome | Brass | Gold | Female to Female | 1000 | |||||||||||||||
LEMO RAD.0S.403.CLL | 403 | Push-Pull | Brass | -55 °C | 250 °C | Shielded | Male Pins | Female Sockets | IP50 | Chrome | 1 Adapter, 1 Nut, 1 Washer | Mounting Hardware | 4 A | Silver | Standard | Bulkhead - Rear Side Nut | 1 | 1 | 403 |
