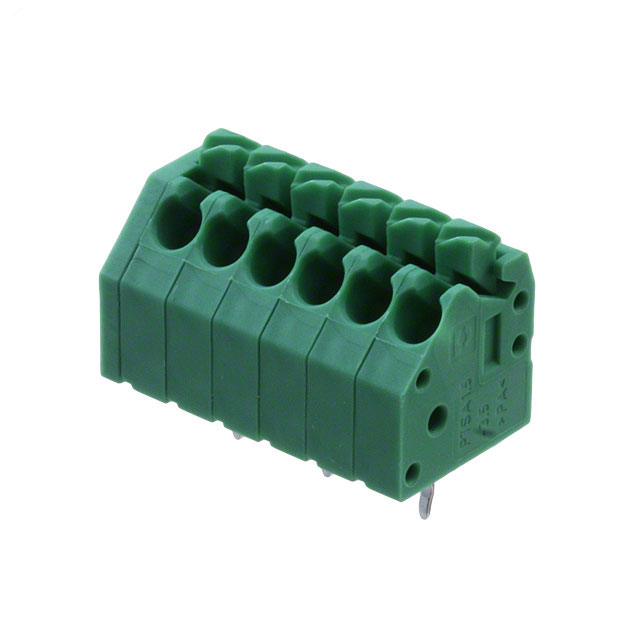

WIRE-TO-BOARD TERMINAL BLOCK, 3.5 MM, 6 POSITIONS, 20 AWG, 16 AWG, 1.5 MM², PUSH IN
Deep-Dive with AI
Search across all available documentation for this part.
1985234
ActivePhoenix Contact
WIRE-TO-BOARD TERMINAL BLOCK, 3.5 MM, 6 POSITIONS, 20 AWG, 16 AWG, 1.5 MM², PUSH IN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1985234 | PTSA 1,5 Series |
|---|---|---|
| Color | Green | Green, Yellow |
| Current | 2 A | 2 A |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mating Orientation | 135 ° | 135 ° |
| Mating Orientation | 45 ° | 45 ° |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Pitch [x] | 3.5 mm | 3.5 mm |
| Pitch [x] | 0.138 in | 0.138 in |
| Positions Per Level | 6 | 2 - 23 |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp | Screwless - Spring Cage, Tension Clamp |
PTSA 1,5 Series
Fixed Terminal Blocks PTSA 1.5/23-3.5-F
| Part | Voltage | Wire Termination | Housing Material | Mounting Type | Number of Levels | Mating Orientation | Mating Orientation | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Current | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1985030 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 9 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
Phoenix Contact 1985357 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 18 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
Phoenix Contact 1701057 | 300 V | Screwless - Spring Cage, Tension Clamp | Through Hole | 1 | 135 ° | 45 ° | 2 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Yellow | |
Phoenix Contact 1985140 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 20 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
Phoenix Contact 1985179 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 23 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
Phoenix Contact 1985234 | 300 V | Screwless - Spring Cage, Tension Clamp | Polyamide (PA), Nylon | Through Hole | 1 | 135 ° | 45 ° | 6 | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | 2 A | Green |
