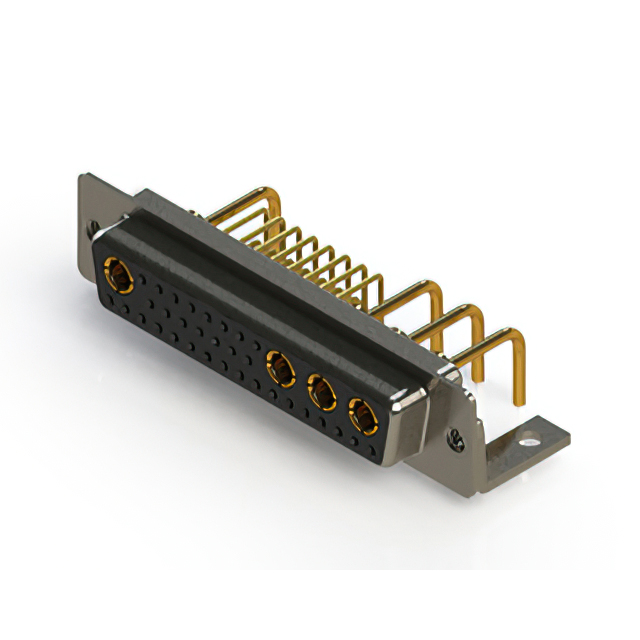

630-36W4250-1TC

Active

EDAC Inc.

CONN D-SUB RCPT 36POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-36W4250-1TC

Active

EDAC Inc.

CONN D-SUB RCPT 36POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-36W4250-1TC

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D), 36W4
Termination	Solder
Voltage Rating	125 VDC

630-36W Series

...

Part	Flange Feature	Connector Style	Shell Size, Connector Layout	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Dielectric Material	Features	Mounting Type	Contact Material	Backset Spacing	Backset Spacing	Connector Type	Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish	Number of Rows	Termination	Contact Finish Thickness	Current Rating (Amps)	Shell Material, Finish	Current Rating (Amps)
EDAC Inc. 630-36W4640-7TB	Housing/Shell (M3)	Combo D-Sub	36W4 5 (DD D)	4	32	0.76 Ám	30 Áin	Coax Signal	Polyester Thermoplastic	Board Lock Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder
EDAC Inc. 630-36W4250-1N4	Housing/Shell (4-40)	Combo D-Sub	36W4 5 (DD D)					Signal and Power	Polyester Thermoplastic	Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder	Flash	10A 5A	Nickel Plated Steel
EDAC Inc. 630-36W4250-1T5	4-40	Combo D-Sub	36W4 5 (DD D)					Signal and Power	Polyester Thermoplastic	Board Lock Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder	Flash	10A 5A
EDAC Inc. 630-36W4640-4N1	Housing/Shell (Unthreaded)	Combo D-Sub	36W4 5 (DD D)			0.76 Ám	30 Áin	Signal and Power	Polyester Thermoplastic	Shielded	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder			Nickel Plated Steel	5 A 40 A
EDAC Inc. 630-36W4650-4N3	Housing/Shell (4-40)	Combo D-Sub	36W4 5 (DD D)			0.76 Ám	30 Áin	Signal and Power	Polyester Thermoplastic	Board Lock Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder			Nickel Plated Steel	5 A 40 A
EDAC Inc. 630-36W4250-1TC	Housing/Shell (M3)	Combo D-Sub	36W4 5 (DD D)					Signal and Power	Polyester Thermoplastic	Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder	Flash	10A 5A
EDAC Inc. 630-36W4640-5T6	4-40	Combo D-Sub	36W4 5 (DD D)	4	32	0.76 Ám	30 Áin	Coax Signal	Polyester Thermoplastic		Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder
EDAC Inc. 630-36W4640-4NC	Housing/Shell (M3)	Combo D-Sub	36W4 5 (DD D)			0.76 Ám	30 Áin	Signal and Power	Polyester Thermoplastic	Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder			Nickel Plated Steel	5 A 40 A
EDAC Inc. 630-36W4250-3NC	Housing/Shell (M3)	Combo D-Sub	36W4 5 (DD D)					Signal and Power	Polyester Thermoplastic	Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder	Flash		Nickel Plated Steel	5 A 30 A
EDAC Inc. 630-36W4650-4N1	Housing/Shell (Unthreaded)	Combo D-Sub	36W4 5 (DD D)			0.76 Ám	30 Áin	Signal and Power	Polyester Thermoplastic	Shielded	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder			Nickel Plated Steel	5 A 40 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 10.99

Description

General part information

630-36W Series

36 (32 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
