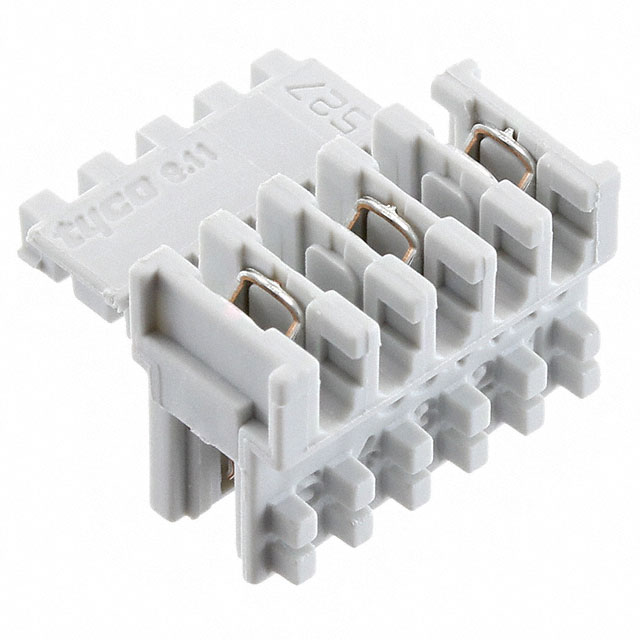

3-966480-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 5POS IDC TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-966480-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 5POS IDC TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-966480-5 | 966480 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Gray | Gray |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin |
| Contact Type | Female Socket | Female Socket |
| Features | Mates to PCB | Mates to PCB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 7 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
| Wire Type | Discrete | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 24640 | $ 0.27 | |
966480 Series
CONN RCPT 5POS IDC TIN
| Part | Number of Rows | Pitch [x] | Pitch [x] | Mounting Type | Color | Features | Connector Type | Contact Finish | Cable Termination | Wire Type | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-966480-5 | 1 | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Gray | Mates to PCB | Receptacle | Tin | IDC | Discrete | Female Socket | |
TE Connectivity AMP Connectors 3-966480-7 | 1 | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Gray | Receptacle | Tin | IDC | Discrete | Female Socket | 7 |
Description
General part information
966480 Series
5 Position Rectangular Receptacle Connector IDC Tin
