1411184

Active

Phoenix Contact

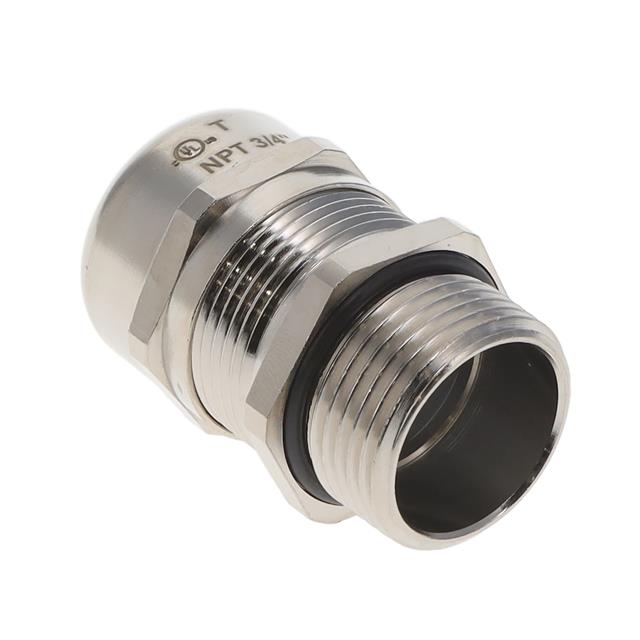

CABLE GLAND 13-18.01MM 3/4" NPT

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 13-18.01MM 3/4" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	1411184

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm
Outside Cable Diameter (Min)	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in
Thread Length	13 mm
Thread Length	0.512 in
Thread Size	3/4 NPT
Type	Cable Gland

CABLE GLAND 13-18.01MM 3/4" NPT

Part	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Includes	Thread Size	Color	Ingress Protection
Phoenix Contact 1411184	Cable Gland	0.512 in	13 mm	0.709 in	18.01 mm	Brass, Nickel Plated	100 °C	-20 C	13 mm	0.512 in	O-Ring, Seal	3/4 NPT	Silver	IP68 - Dust Tight, Waterproof; NEMA 4X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 3/4" NPT Silver
