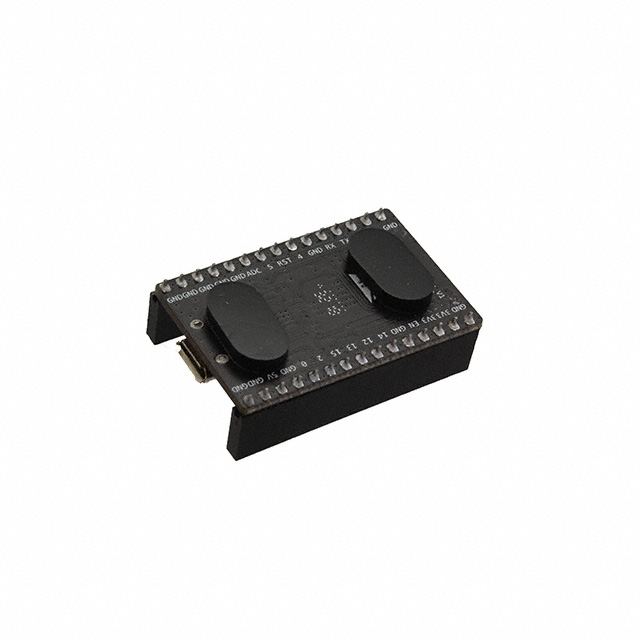

ESP8266-DEVKITC-02U-F
ActiveEspressif Systems
ESP-WROOM-02U EVAL BOARD
Deep-Dive with AI
Search across all available documentation for this part.
ESP8266-DEVKITC-02U-F
ActiveEspressif Systems
ESP-WROOM-02U EVAL BOARD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ESP8266-DEVKITC-02U-F | ESP8266 Series |
|---|---|---|
| Contents | - | Board(s) |
| Current - Receiving | - | 50 mA |
| Current - Receiving | - | 56 mA |
| Current - Transmitting | - | 170 mA |
| Current - Transmitting | - | 120 mA |
| Data Rate (Max) | - | 54 Mbps |
| For Use With/Related Products | ESP8266, ESP-WROOM-02U | ESP-WROOM-02, ESP8266, ESP-WROOM-02U, ESP-WROOM-02D |
| Frequency | 2.4 GHz | 2.4 GHz |
| GPIO | - | 8 |
| Mounting Type | - | Surface Mount |
| Note | - | Note: Not recommended for mass production use |
| Package / Case | - | 32-VFQFN Exposed Pad |
| Power - Output | - | 20 dBm |
| Protocol | - | 802.11b/g/n |
| RF Family/Standard | - | WiFi |
| Sensitivity | - | -91 dBm |
| Serial Interfaces | - | SPI, I2C, I2S, UART |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 32-QFN (5x5) |
| Type | Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) | Programmer, TxRx + MCU, Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 2.5 V |
ESP8266 Series
ESP8266 WROOM FLASHING BOARD
| Part | Note | Type | For Use With/Related Products | Contents | RF Family/Standard | Current - Receiving [Min] | Current - Receiving [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Transmitting [Max] | Current - Transmitting [Min] | Data Rate (Max) [Max] | Package / Case | Protocol | Power - Output | Supplier Device Package | GPIO | Frequency | Sensitivity | Serial Interfaces | Mounting Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Espressif Systems ESP8266-DEVKITS | Note: Not recommended for mass production use | Programmer | ESP-WROOM-02 | Board(s) | ||||||||||||||||||
Espressif Systems ESP8266EX | TxRx + MCU | WiFi | 50 mA | 56 mA | 3.6 V | 2.5 V | 170 mA | 120 mA | 54 Mbps | 32-VFQFN Exposed Pad | 802.11b/g/n | 20 dBm | 32-QFN (5x5) | 8 | 2.4 GHz | -91 dBm | I2C, I2S, SPI, UART | Surface Mount | ||||
Espressif Systems ESP8266-DEVKITC-02U-F | Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) | ESP-WROOM-02U, ESP8266 | 2.4 GHz | Board(s) | ||||||||||||||||||
Espressif Systems ESP8266-DEVKITC-02D-F | Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) | ESP-WROOM-02D, ESP8266 | 2.4 GHz | Board(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.00 | |
Description
General part information
ESP8266 Series
ESP8266, ESP-WROOM-02U - Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board
