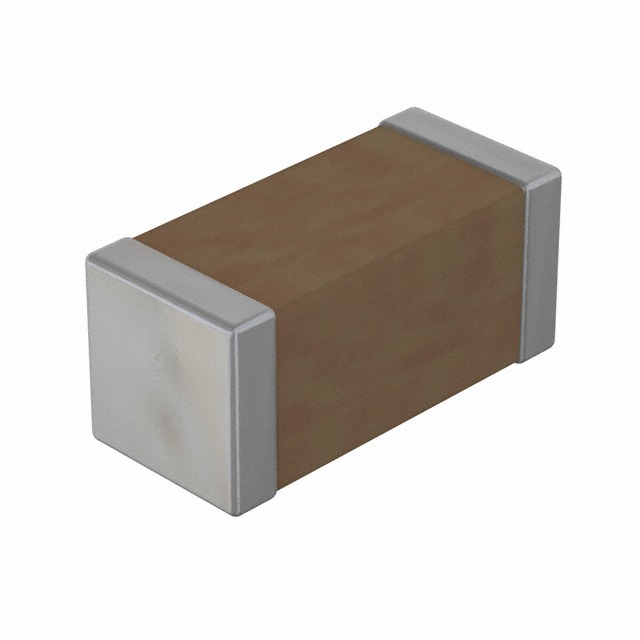

LS1808N102K302NX080TM
Knowles Johanson Manufacturing
CAP CER 1000PF 250V C0G 1808
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS1808N102K302NX080TM
Knowles Johanson Manufacturing
CAP CER 1000PF 250V C0G 1808
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LS1808N102K302NX080TM |
|---|---|
| Applications | Safety |
| Capacitance | 0.001 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1808 |
| Package / Case | 4520 Metric |
| Ratings [x] | X2 |
| Ratings [y] | Y3 |
| Size / Dimension [x] | 0.18 " |
| Size / Dimension [x] | 4.57 mm |
| Size / Dimension [y] | 0.08 " |
| Size / Dimension [y] | 2.03 mm |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) [Max] | 0.065 in |
| Thickness (Max) [Max] | 1.65 mm |
| Tolerance | 10 % |
| Voltage - Rated | 250 VAC |
LS1808N Series
| Part | Ratings [x] | Ratings [y] | Package / Case | Package / Case | Voltage - Rated | Mounting Type | Temperature Coefficient | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Applications | Thickness (Max) [Max] | Thickness (Max) [Max] | Tolerance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 680 pF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 10 % | |
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 68 pF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 10 % | |
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 15 pF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 10 % | |
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 0.001 µF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 10 % | |
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 82 pF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 10 % | High Temperature |
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 390 pF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 10 % | |
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 8.2 pF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 0.25 pF | High Temperature |
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 47 pF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 10 % | |
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 5 pF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 0.25 pF | |
Knowles Johanson Manufacturing | X2 | Y3 | 1808 | 4520 Metric | 250 VAC | MLCC Surface Mount | C0G NP0 | 270 pF | -55 °C | 125 °C | 0.08 " | 2.03 mm | 0.18 " | 4.57 mm | Safety | 0.065 in | 1.65 mm | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.33 | |
| 10 | $ 2.56 | |||
| 50 | $ 2.31 | |||
| 100 | $ 1.99 | |||
| 500 | $ 1.56 | |||
| Digi-Reel® | 1 | $ 3.33 | ||
| 10 | $ 2.56 | |||
| 50 | $ 2.31 | |||
| 100 | $ 1.99 | |||
| 500 | $ 1.56 | |||
| Tape & Reel (TR) | 1500 | $ 1.33 | ||
Description
General part information
LS1808N Series
1000 pF ±10% 250VAC Ceramic Capacitor C0G, NP0 1808 (4520 Metric)
