104482-6

Active

TE Connectivity AMP Connectors

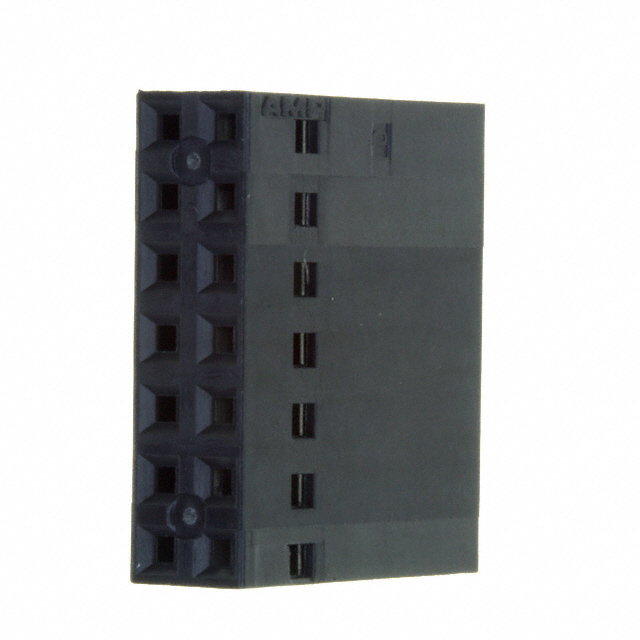

CONN RCPT HSG 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

104482-6

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 14POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	104482-6	104482 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	14	4 - 40
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.59
		10	$ 1.45
		25	$ 1.41
		50	$ 1.40
		100	$ 1.30
		250	$ 1.27
		500	$ 1.16
		1000	$ 1.04
		2500	$ 0.96

104482 Series

CONN RCPT HSG 12POS 2.54MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Row Spacing [x]	Row Spacing	Color	Mounting Type	Insulation Material	Connector Type	Number of Positions	Contact Termination	Note	Pitch [x]	Pitch [x]	Number of Positions
TE Connectivity AMP Connectors 104482-5	125 °C	-65 ░C	Female Socket	2	0.1 in	2.54 mm	Black	Free Hanging (In-Line)	Thermoplastic	Receptacle	12	Crimp	Contacts Not Included	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104482-1	125 °C	-65 ░C	Female Socket	2	0.1 in	2.54 mm	Black	Free Hanging (In-Line)	Thermoplastic	Receptacle	4	Crimp	Contacts Not Included	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104482-9			Female Socket	2	0.1 in	2.54 mm	Black	Free Hanging (In-Line)		Receptacle	20	Crimp	Contacts Not Included	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104482-6	125 °C	-65 ░C	Female Socket	2	0.1 in	2.54 mm	Black	Free Hanging (In-Line)	Thermoplastic	Receptacle	14	Crimp	Contacts Not Included	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104482-7	125 °C	-65 ░C	Female Socket	2	0.1 in	2.54 mm	Black	Free Hanging (In-Line)	Thermoplastic	Receptacle		Crimp	Contacts Not Included	2.54 mm	0.1 in	16
TE Connectivity AMP Connectors 104482-8	125 °C	-65 ░C	Female Socket	2	0.1 in	2.54 mm	Black	Free Hanging (In-Line)	Thermoplastic	Receptacle	18	Crimp	Contacts Not Included	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-104482-8	125 °C	-65 ░C	Female Socket	2	0.1 in	2.54 mm	Black	Free Hanging (In-Line)	Thermoplastic	Receptacle	40	Crimp	Contacts Not Included	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-104482-0	125 °C	-65 ░C	Female Socket	2	0.1 in	2.54 mm	Black	Free Hanging (In-Line)	Thermoplastic	Receptacle	22 positions	Crimp	Contacts Not Included	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-104482-7	125 °C	-65 ░C	Female Socket	2	0.1 in	2.54 mm	Black	Free Hanging (In-Line)	Thermoplastic	Receptacle	38	Crimp	Contacts Not Included	2.54 mm	0.1 in

Description

General part information

104482 Series

14 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
