G9225E24B1-FSR

Active

Mechatronics Fan Group

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC Lead Wire Specs

G9225E24B1-FSR

Active

Mechatronics Fan Group

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet DC Lead Wire Specs

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.81
		10	$ 12.32
		25	$ 11.77
		50	$ 11.37
		100	$ 10.98
		250	$ 10.49
		500	$ 10.13

Description

General part information

G9225 Series

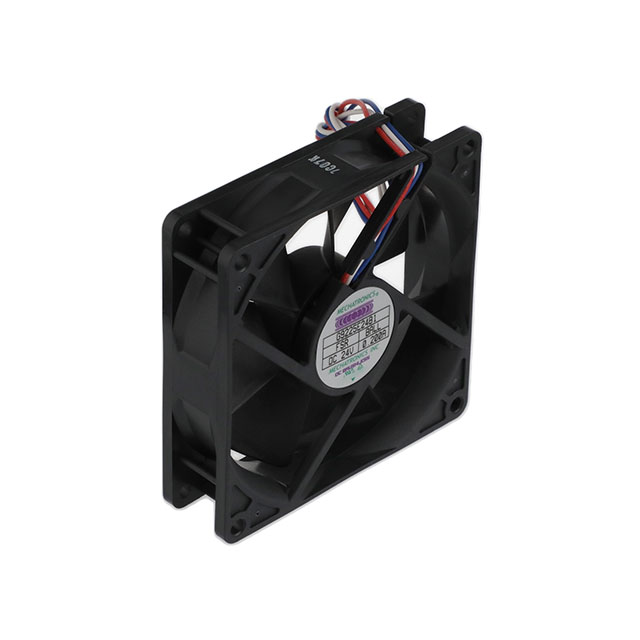

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 58.0 CFM (1.62m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Datasheet

DC Lead Wire Specs

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	G9225E24B1-FSR	G9225 Series

Air Flow	1.62 mł/min	0.952 - 50 m³/min
Air Flow	58 CFM	34 - 66 CFM
Air Flow	-	1.4 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.2 A	0.09 - 490 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Thermal Overload Protector (TOP)	Speed Sensor (Tach), Thermal Overload Protector (TOP), PWM Control, Locked Rotor Sensor
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	-	Polybutylene Terephthalate (PBT)
Noise	39 dB(A)	23 - 42 dB
RPM	3200 RPM	1600 - 3600 RPM
Static Pressure	0.21 in H2O	0.09 - 0.24 in H2O
Static Pressure	52.3 Pa	22.4 - 59.8 Pa
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated	24 VDC	5 - 24 VDC
Weight	0.218 lb	0.19 - 0.218 lb
Weight	98.88 g	86.18 - 98.88 g
Width [y]	25 mm	25 mm

G9225 Series

FAN AXIAL 92X25MM 12VDC WIRE

Part	Static Pressure	Static Pressure	Air Flow	Air Flow	Termination	Fan Type	Width [y]	Approval Agency	Noise	Features	Current Rating (Amps)	Voltage - Rated	RPM	Bearing Type	Weight	Weight	Air Flow	Ingress Protection	Material - Blade
Mechatronics Fan Group G9225X12B1-FSR	59.8 Pa	0.24 in H2O	66 CFM	1.85 m³/min	3 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	42 dB	Speed Sensor (Tach), Thermal Overload Protector (TOP)	490 mA	12 VDC	3600 RPM	Ball	0.218 lb	98.88 g
Mechatronics Fan Group G9225L24B-FSR	22.4 Pa	0.09 in H2O	34 CFM	0.952 m³/min	2 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	27 dB(A)	Thermal Overload Protector (TOP)	0.09 A	24 VDC	2000 RPM	Ball	0.218 lb	98.88 g
Mechatronics Fan Group G9225H12B-FSR-EM				50 CFM	2 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	36 dB	Thermal Overload Protector (TOP)	0.28 A	12 VDC	2800 RPM	Ball	0.218 lb	98.88 g	1.4 m³/min	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G9225M12B-FSR	29.9 Pa	0.12 in H2O	42 CFM	1.18 m³/min	2 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	32 dB	Thermal Overload Protector (TOP)	0.2 A	12 VDC	2400 RPM	Ball	0.218 lb	98.88 g
Mechatronics Fan Group G9225H12B-FGR	24.9 Pa	0.1 in H2O	48 CFM	1.34 m³/min	2 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	26 dB	Thermal Overload Protector (TOP)	0.28 A	12 VDC	2400 RPM	Ball	0.218 lb	98.88 g			Polybutylene Terephthalate (PBT)
Mechatronics Fan Group G9225H12B6-FSR-EM				50 CFM	3 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	36 dB	PWM Control, Thermal Overload Protector (TOP)	0.28 A	12 VDC	2800 RPM	Ball	0.218 lb	98.88 g	1.4 m³/min	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G9225E24B-FSR	52.3 Pa	0.21 in H2O	58 CFM	1.62 mł/min	2 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	39 dB(A)	Thermal Overload Protector (TOP)	0.2 A	24 VDC	3200 RPM	Ball	0.218 lb	98.88 g
Mechatronics Fan Group G9225E12B-FSR-EM	52.3 Pa	0.21 in H2O	58 CFM	1.62 mł/min	2 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	39 dB(A)	Thermal Overload Protector (TOP)	370 mA	12 VDC	3200 RPM	Ball	0.218 lb	98.88 g		IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G9225S05B2-FSR					3 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	23 dB(A)	Locked Rotor Sensor, Thermal Overload Protector (TOP)		5 V	1600 RPM	Ball	0.218 lb	98.88 g
Mechatronics Fan Group G9225E12B-FSR	52.3 Pa	0.21 in H2O	58 CFM	1.62 mł/min	2 Wire Leads	Tubeaxial	25 mm	CE, cUL, TUV, UL	39 dB(A)	Thermal Overload Protector (TOP)	370 mA	12 VDC	3200 RPM	Ball	0.218 lb	98.88 g
