RY2S-ULAC120V

Active

IDEC Corporation

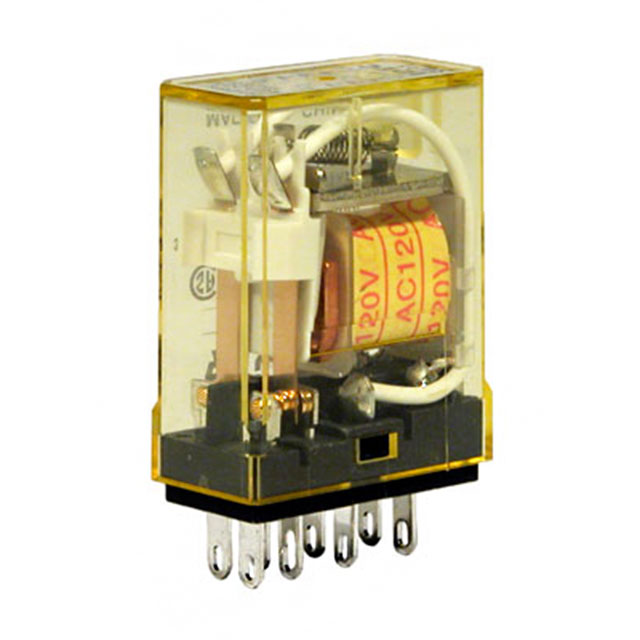

POWER RELAY, DPDT, 120 VAC, 3 A, RY SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

RY2S-ULAC120V

Active

IDEC Corporation

POWER RELAY, DPDT, 120 VAC, 3 A, RY SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.78
		10	$ 15.53
		25	$ 14.71
		50	$ 14.13
		100	$ 13.56
		250	$ 12.85
		500	$ 12.34

Description

General part information

RY2S-U Series

The RY2S-ULAC120V is a general-purpose Miniature Relay with DPDT gold-plated silver contacts and plug-in terminals. This RY-series relay is available in wide variety of terminal styles and coil voltages meet a wide range of applications.

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet

Specification	RY2S-ULAC120V	RY2S-U Series

Approval Agency	TUV, CSA, UR, CE	TUV, CSA, UR, CE
Coil Current	7.5 mA	4.1 - 170 mA
Coil Resistance	8.1 kOhms	2.66 - 750 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC	6 - 240 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)
Contact Rating (Current)	3 A	3 A
Features	Lighted Indicator	Test Button, Lighted Indicator, Diode
Load - Max Switching	90 W, 720 VA	90 - 720 W
Mounting Type	Socketable	Socketable, Chassis Mount
Must Operate Voltage	96 VAC	4.8 - 192 VDC
Must Release Voltage	36 VAC	0.6 - 72 VDC
Operate Time	20 ms	20 ms
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	20 ms
Switching Voltage	30 VDC, 240 VAC	30 - 240 VDC
Termination Style	Plug In	Plug In, Quick Connect - 0.110" (2.8mm)

Part

Coil Current

Relay Type

Switching Voltage

Must Release Voltage

Coil Type

Contact Material

Operate Time

Termination Style

Features

Mounting Type

Coil Resistance

Coil Voltage

Contact Rating (Current)

Operating Temperature [Max]

Operating Temperature [Min]

Contact Form

Approval Agency

Load - Max Switching

Release Time

Must Operate Voltage

IDEC Corporation

RY2S-UCDC48V

18 mA

General Purpose

30 VDC, 240 VAC

4.8 VDC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Plug In

Test Button

Socketable

2.66 kOhms

48 VDC

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

38.4 VDC

IDEC Corporation

RY2S-ULDC24V

32 mA

General Purpose

30 VDC, 240 VAC

2.4 VDC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Plug In

Lighted Indicator

Socketable

750 Ohms

24 VDC

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

19.2 VDC

IDEC Corporation

RY2S-UAC6V

170 mA

General Purpose

30 VDC, 240 VAC

1.8 VAC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Plug In

Socketable

18.8 Ohms

6 VAC

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

4.8 VAC/DC

IDEC Corporation

RY2S-UTDC48V

18 mA

General Purpose

30 VDC, 240 VAC

4.8 VDC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Quick Connect - 0.110" (2.8mm)

Chassis Mount

2.66 kOhms

48 VDC

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

38.4 VDC

IDEC Corporation

RY2S-ULCDC6V

128 mA

General Purpose

30 VDC, 240 VAC

0.6 VDC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Plug In

Lighted Indicator, Test Button

Socketable

47 Ohms

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

4.8 VDC

IDEC Corporation

RY2S-ULCAC120V

7.5 mA

General Purpose

30 VDC, 240 VAC

36 VAC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Plug In

Lighted Indicator, Test Button

Socketable

8.1 kOhms

120 VAC

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

96 VAC

IDEC Corporation

RY2S-ULAC50V

General Purpose

30 VDC, 240 VAC

15 VAC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Plug In

Lighted Indicator

Socketable

50 VAC

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

40 VAC

IDEC Corporation

RY2S-UAC240V

4.3 mA

General Purpose

30 VDC, 240 VAC

72 VAC/DC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Plug In

Socketable

26.71 kOhms

240 VAC

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

192 VAC

IDEC Corporation

RY2S-ULCAC12V

75 mA

General Purpose

30 VDC, 240 VAC

3.6 VAC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Plug In

Lighted Indicator, Test Button

Socketable

76.8 Ohms

12 VAC/DC

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

9.6 VAC/DC

IDEC Corporation

RY2S-ULAC24V

37 mA

General Purpose

30 VDC, 240 VAC

7.2 VAC

Non Latching

Gold (Au), Silver (Ag)

20 ms

Plug In

Lighted Indicator

Socketable

300 Ohms

24 VAC

3 A

55 °C

-25 °C

DPDT (2 Form C)

CE, CSA, TUV, UR

90 W, 720 VA

20 ms

19.2 VAC

Part	Coil Current	Relay Type	Switching Voltage	Must Release Voltage	Coil Type	Contact Material	Operate Time	Termination Style	Features	Mounting Type	Coil Resistance	Coil Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Approval Agency	Load - Max Switching	Release Time	Must Operate Voltage
IDEC Corporation RY2S-UCDC48V	18 mA	General Purpose	30 VDC, 240 VAC	4.8 VDC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Plug In	Test Button	Socketable	2.66 kOhms	48 VDC	3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	38.4 VDC
IDEC Corporation RY2S-ULDC24V	32 mA	General Purpose	30 VDC, 240 VAC	2.4 VDC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Plug In	Lighted Indicator	Socketable	750 Ohms	24 VDC	3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	19.2 VDC
IDEC Corporation RY2S-UAC6V	170 mA	General Purpose	30 VDC, 240 VAC	1.8 VAC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Plug In		Socketable	18.8 Ohms	6 VAC	3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	4.8 VAC/DC
IDEC Corporation RY2S-UTDC48V	18 mA	General Purpose	30 VDC, 240 VAC	4.8 VDC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Quick Connect - 0.110" (2.8mm)		Chassis Mount	2.66 kOhms	48 VDC	3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	38.4 VDC
IDEC Corporation RY2S-ULCDC6V	128 mA	General Purpose	30 VDC, 240 VAC	0.6 VDC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Plug In	Lighted Indicator, Test Button	Socketable	47 Ohms		3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	4.8 VDC
IDEC Corporation RY2S-ULCAC120V	7.5 mA	General Purpose	30 VDC, 240 VAC	36 VAC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Plug In	Lighted Indicator, Test Button	Socketable	8.1 kOhms	120 VAC	3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	96 VAC
IDEC Corporation RY2S-ULAC50V		General Purpose	30 VDC, 240 VAC	15 VAC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Plug In	Lighted Indicator	Socketable		50 VAC	3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	40 VAC
IDEC Corporation RY2S-UAC240V	4.3 mA	General Purpose	30 VDC, 240 VAC	72 VAC/DC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Plug In		Socketable	26.71 kOhms	240 VAC	3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	192 VAC
IDEC Corporation RY2S-ULCAC12V	75 mA	General Purpose	30 VDC, 240 VAC	3.6 VAC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Plug In	Lighted Indicator, Test Button	Socketable	76.8 Ohms	12 VAC/DC	3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	9.6 VAC/DC
IDEC Corporation RY2S-ULAC24V	37 mA	General Purpose	30 VDC, 240 VAC	7.2 VAC	Non Latching	Gold (Au), Silver (Ag)	20 ms	Plug In	Lighted Indicator	Socketable	300 Ohms	24 VAC	3 A	55 °C	-25 °C	DPDT (2 Form C)	CE, CSA, TUV, UR	90 W, 720 VA	20 ms	19.2 VAC
