SHF260-0113-6-9
UnknownTE Connectivity Raychem Cable Protection

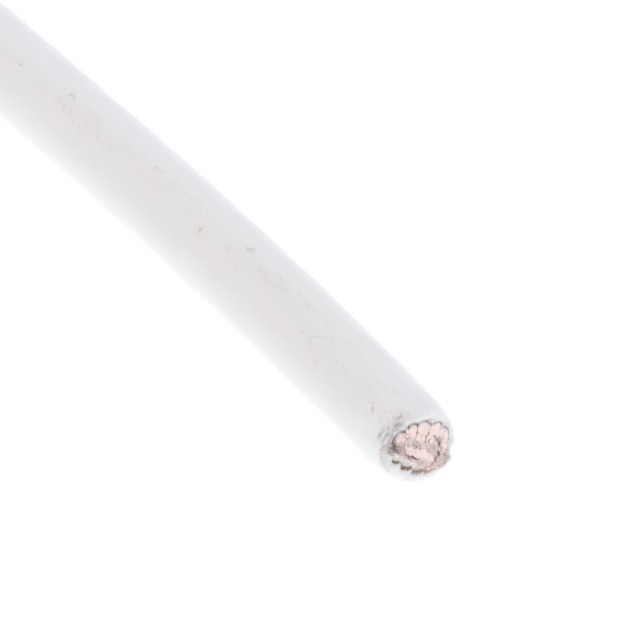

HOOKUP STRND 6AWG WHT 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SHF260-0113-6-9
UnknownTE Connectivity Raychem Cable Protection
HOOKUP STRND 6AWG WHT 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SHF260-0113-6-9 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Nickel Coated, Copper |
| Conductor Strand [custom] | 1045 |
| Conductor Strand [custom] | 36 |
| Jacket (Insulation) Material | Perfluoroalkoxy (PFA) |
| Length | 1.52 m, 15.24 m |
| Length | 5 ' |
| Length [x] | 30.5 m, 7.62 m |
| Length [x] | 100 ft, 50 ft, 25 ft |
| Operating Temperature [Max] | 260 ░C |
| Operating Temperature [Min] | -65 ░C |
| Voltage | 1000 V |
| Wire Gauge | 6 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 313.07 | |
| 1 | $ 1233.54 | |||
| 1 | $ 648.26 | |||
| 1 | $ 75.55 | |||
Description
General part information
SHF260 Series
6 AWG Hook-Up Wire 1045/36 White 1000V 100.0' (30.5m)
