SWITCH ROCKER DPDT 20A 12V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER DPDT 20A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

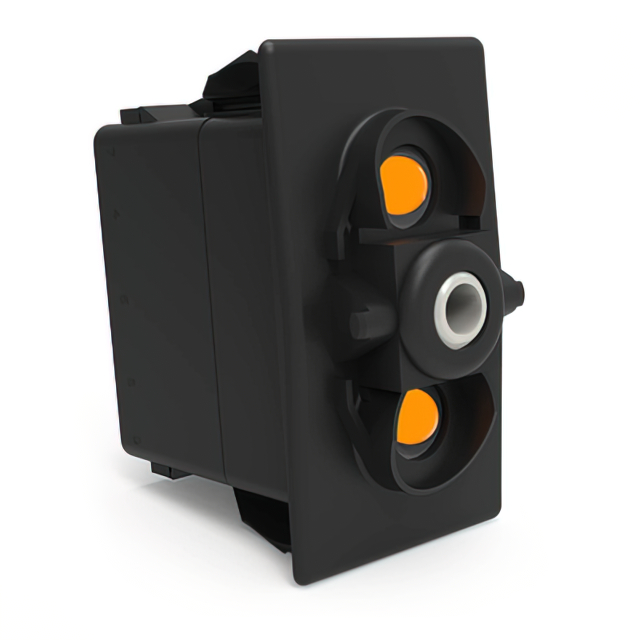

Rocker Switch DPDT 20A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	VLD2UNNB-00000-000	VLD2UNNB Series

Actuator Marking	Varies by Cap	Varies by Cap, High Beam, Vertical, Low Beam, No Marking
Actuator Type	Actuator Arm, Cap Required - Illuminated	Actuator Arm, Cap Required - Illuminated, Convex (Reverse V) - Illuminated
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Circuit	DPDT	DPDT
Color - Actuator/Cap	-	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	100000 Cycles	100000 Cycles
Illumination Type, Color	Amber/Amber, LED	Amber/Amber, LED
Illumination Voltage (Nominal)	12 VDC	12 VDC
Ingress Protection	IP66/IP68	IP66/IP68
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER DPDT 20A 12V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Ingress Protection	Termination Style	Actuator Marking	Current Rating (Amps)	Illumination Voltage (Nominal)	Switch Function	Mounting Type	Actuator Type	Illumination Type, Color	Voltage Rating - DC	Electrical Life	Circuit	Color - Actuator/Cap
Carling Technologies VLD2UNNB-00000-000	21.08 mm	36.83 mm	100000 Cycles	85 °C	-40 °C	CSA, UL, VDE	IP66/IP68	Quick Connect - 0.250" (6.3mm)	Varies by Cap	20 A	12 VDC	Mom-Off-Mom	Panel Mount, Snap-In	Actuator Arm, Cap Required - Illuminated	Amber/Amber, LED	12 V	100000 Cycles	DPDT
Carling Technologies VLD2UNNB-GACY9-1Z2	21.08 mm	36.83 mm	100000 Cycles	85 °C	-40 °C	CSA, UL, VDE	IP66/IP68	Quick Connect - 0.250" (6.3mm)	High Beam, Low Beam, Vertical	20 A	12 VDC	Mom-Off-Mom	Panel Mount, Snap-In	Convex (Reverse V) - Illuminated	Amber/Amber, LED	12 V	100000 Cycles	DPDT	Black
Carling Technologies VLD2UNNB-A2B00-000	21.08 mm	36.83 mm	100000 Cycles	85 °C	-40 °C	CSA, UL, VDE	IP66/IP68	Quick Connect - 0.250" (6.3mm)	No Marking	20 A	12 VDC	Mom-Off-Mom	Panel Mount, Snap-In	Convex (Reverse V) - Illuminated	Amber/Amber, LED	12 V	100000 Cycles	DPDT	Black
