Description
General part information

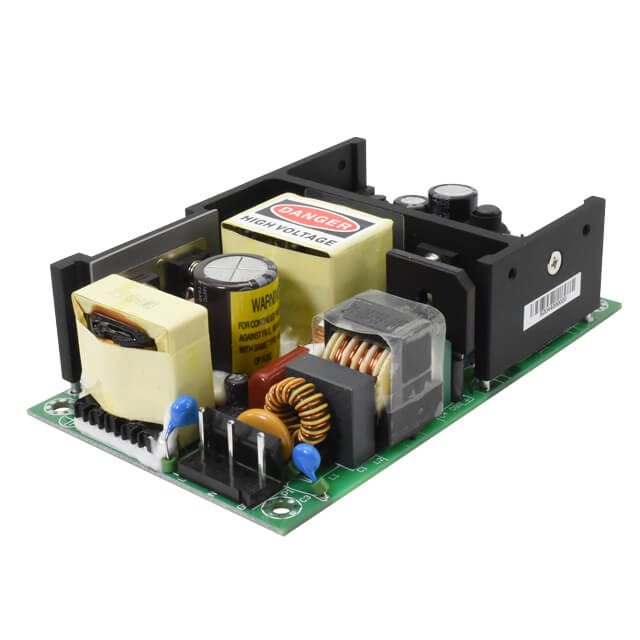

VSBU-120C-T515A
Open Frame AC DC Converters 3 Output 5V 15V -15V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VSBU-120C-T515A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output 1 | 15 A |
| Current - Output 2 | 6 A |
| Current - Output 3 | 800 mA |
| Efficiency | 80 % |
| Features | PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 177 W |
| Size / Dimension Height | 1.32 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 3 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4242 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 15 V |
| Voltage - Output 3 | -15 V |
