WLB03EBN40PWT
ActiveAmphenol Industrial Operations

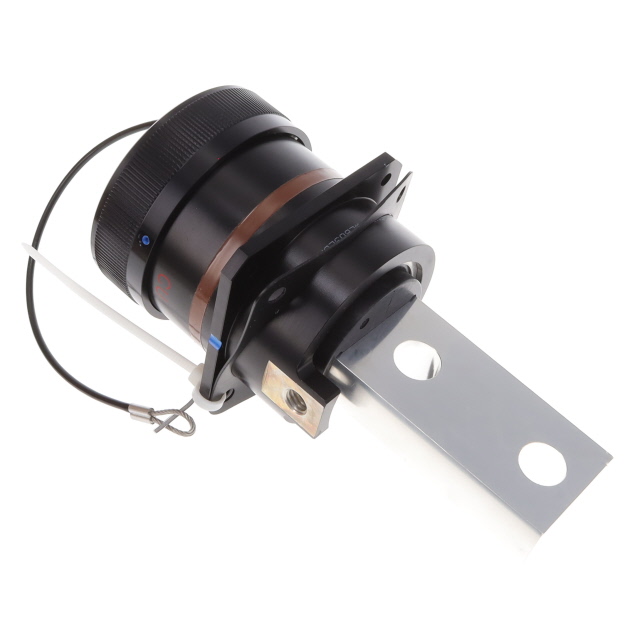

WIND-LOK WALL MOUNT RECEPTACLE,
Deep-Dive with AI
Search across all available documentation for this part.
WLB03EBN40PWT
ActiveAmphenol Industrial Operations
WIND-LOK WALL MOUNT RECEPTACLE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WLB03EBN40PWT | WLB03 Series |
|---|---|---|
| Color | Brown | Green, Brown |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Fastening Type | Reverse Bayonet Lock | Reverse Bayonet Lock |
| Features | Dust Cap | Dust Cap |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Mounting Feature | Flange | Flange |
| Number of Positions | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | W | J, N, W |
| Primary Material | Metal | Metal |
| Shell Finish | Black Anodized | Black Anodized |
| Shell Size - Insert | 40 | 40 |
| Shielding | Shielded | Shielded |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
| Voltage Rating | 1000 VDC | 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 223.29 | |
WLB03 Series
WIND-LOK WALL MOUNT RECEPTACLE,
| Part | Fastening Type | Voltage Rating | Primary Material | Ingress Protection | Shielding | Features | Orientation | Number of Positions | Shell Size - Insert | Termination | Color | Mounting Feature | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations WLB03EGN40PJT | Reverse Bayonet Lock | 1000 VDC | Metal | Environment Resistant | Shielded | Dust Cap | J | 1 | 40 | Solder Eyelet(s) | Green | Flange | Black Anodized | 125 °C | -40 °C | Silver | Male Pins, Receptacle |
Amphenol Industrial Operations WLB03ENC40PNT | Reverse Bayonet Lock | 1000 VDC | Metal | Environment Resistant | Shielded | Dust Cap | N | 1 | 40 | Solder Eyelet(s) | Flange | Black Anodized | 125 °C | -40 °C | Silver | Male Pins, Receptacle | |
Amphenol Industrial Operations WLB03EBN40PWT | Reverse Bayonet Lock | 1000 VDC | Metal | Environment Resistant | Shielded | Dust Cap | W | 1 | 40 | Solder Eyelet(s) | Brown | Flange | Black Anodized | 125 °C | -40 °C | Silver | Male Pins, Receptacle |
Description
General part information
WLB03 Series
1 (Power) Position Circular Connector Receptacle, Male Pins Solder Eyelet(s)
Documents
Technical documentation and resources
No documents available
