Description
General part information
PE9850/2F-10

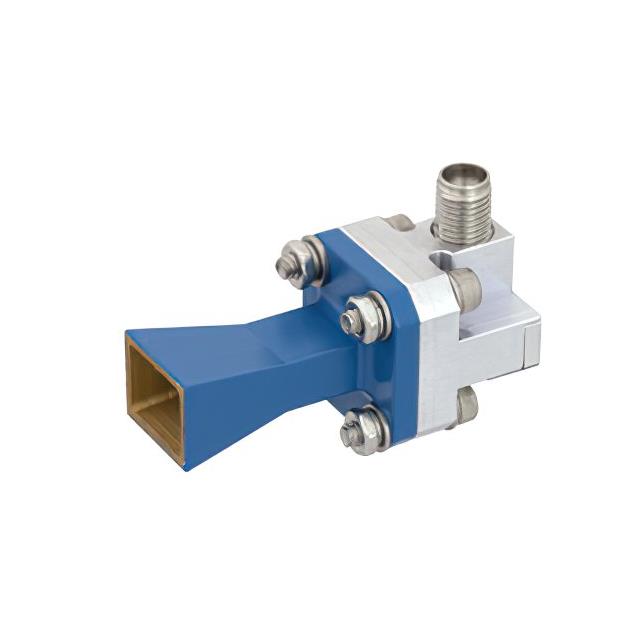

RF ANTENNA General Purpose Horn 2.92mm Female Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9850/2F-10 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Frequency (Center/Band) | 33.25 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 40 GHz |
| Frequency Range (Min) | 26.5 GHz |
| Gain | 10 dBi |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | Female |
| Termination Gender | Female |
| Termination Pin Count | 0 pins |
| Termination Pitch | 2.92 mm |
| Termination Rows | 0 rows |
| Termination Size | 2.92 mm |
| VSWR | 1.25 |
