PA0034C

Active

Chip Quik Inc.

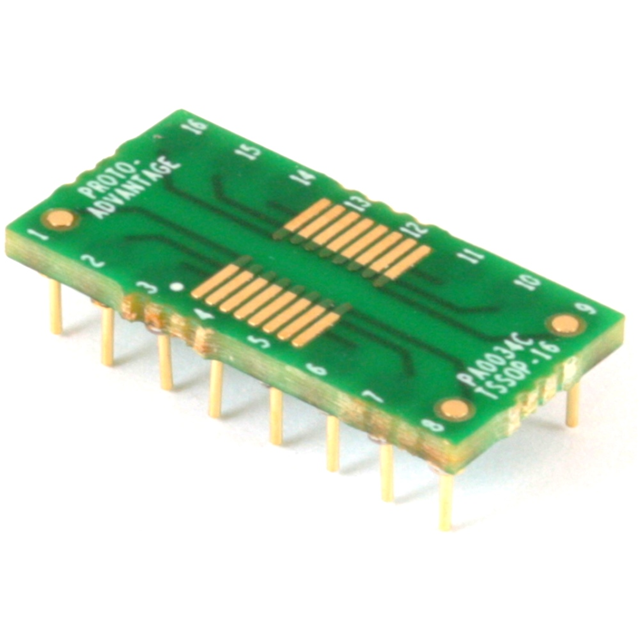

TSSOP-16 TO DIP-16 SMT ADAPTER (

Search across all available documentation for this part.

Active

Chip Quik Inc.

TSSOP-16 TO DIP-16 SMT ADAPTER (

Technical Specifications

Parameters and characteristics for this part

TSSOP-16 TO DIP-16 SMT ADAPTER (

Part	Proto Board Type	Number of Positions	Material	Package Accepted	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Pitch [x]	Pitch [x]	Board Thickness	Board Thickness
Chip Quik Inc. PA0034C	SMD to DIP	16	FR4 Epoxy Glass	TSSOP	0.4 in	20.32 mm	10.16 mm	0.8 "	0.026 in	0.65 mm	1.6 mm	0.063 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.19

General part information

TSSOP-16 TO DIP-16 SMT ADAPTER (

Technical documentation and resources

No documents available
