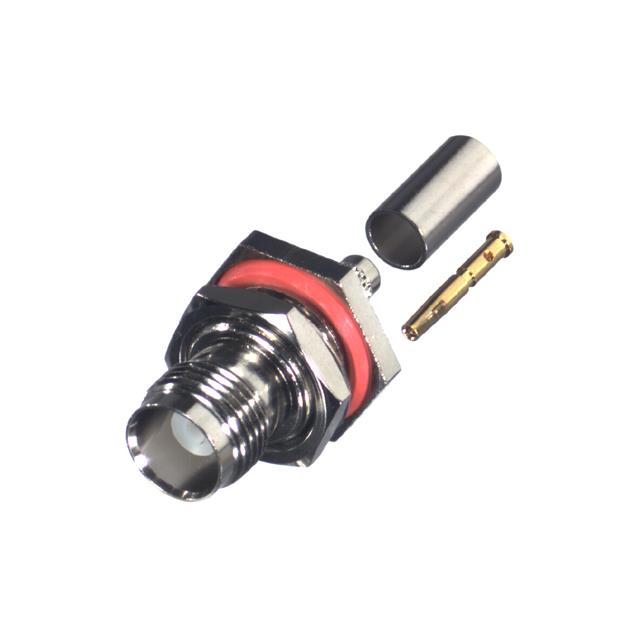

RFT-1212-C2

Active

RF Industries

TNC FEMALE BH CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

TNC FEMALE BH CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFT-1212-C2

Body Finish	Nickel
Body Material	Brass
Cable Group	Alpha 9848, LMR-200, MSI-22
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Frequency - Max [Max]	7 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Body Material	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Impedance	Voltage Rating	Mounting Feature	Center Contact Plating	Dielectric Material	Connector Type	Frequency - Max [Max]	Cable Group	Connector Style	Contact Termination	Body Finish	Number of Ports	Housing Color
RF Industries RFT-1212-C2	Brass	Phosphor Bronze	-65 ░C	85 °C	Crimp	50 Ohms	500 V	Bulkhead - Front Side Nut	Gold	Polyoxymethylene (POM) Acetal	Female Socket Jack	7 GHz	Alpha 9848 LMR-200 MSI-22	TNC	Crimp	Nickel	1	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
