Description
General part information

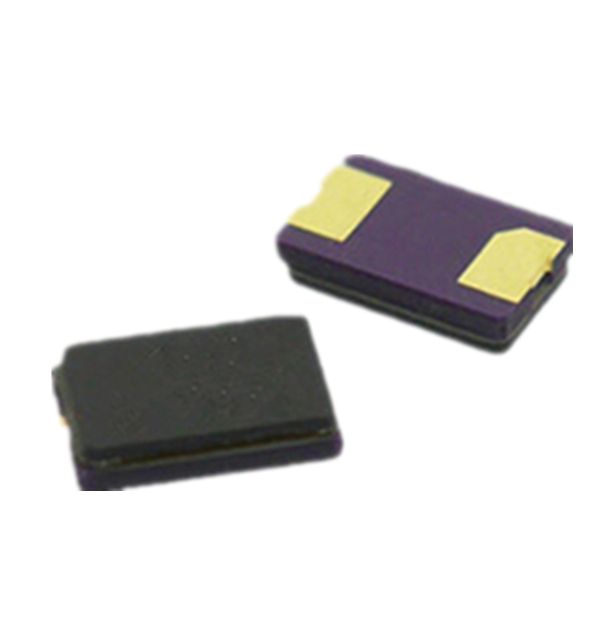

CMG532 12M0A30-10-50-40-80TLH
12 MHz ±30ppm Crystal 10pF 80 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CMG532 12M0A30-10-50-40-80TLH |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 12 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.055 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Package Length | 5 mm |
| Package Name | 2-SMD |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | MHz Crystal |
