630-27W2650-3NB

Active

EDAC Inc.

CONN D-SUB RCPT 27POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-27W2650-3NB

Active

EDAC Inc.

CONN D-SUB RCPT 27POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-27W2650-3NB

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	27W2
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	125 VDC

630-27W Series

...

Part	Connector Style	Number of Rows	Number of Positions	Contact Material	Termination	Contact Type	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Features	Dielectric Material	Voltage Rating	Contact Finish Thickness	Contact Finish	Color	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Material Flammability Rating	Backset Spacing	Backset Spacing	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Current Rating (Amps)
EDAC Inc. 630-27W2240-7TE	Combo D-Sub	2	27	Copper Alloy	Solder	Coax Signal	M3	-55 °C	125 °C	Receptacle Female Sockets	Mounting Brackets	Polyester Thermoplastic	125 VDC	Flash	Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in
EDAC Inc. 630-27W2240-1TD	Combo D-Sub	2		Copper Alloy	Solder	Signal and Power	M3	-55 °C	125 °C	Receptacle Female Sockets	Board Lock Mounting Brackets	Polyester Thermoplastic	125 VDC	Flash	Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in	10A 5A
EDAC Inc. 630-27W2640-1NB	Combo D-Sub	2		Copper Alloy	Solder	Signal and Power	Housing/Shell (M3)	-55 °C	125 °C	Receptacle Female Sockets	Board Lock Mounting Brackets	Polyester Thermoplastic	125 VDC		Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in	10A 5A	0.76 Ám	30 Áin	Nickel Plated Steel
EDAC Inc. 630-27W2240-4N6	Combo D-Sub	2		Copper Alloy	Solder	Signal and Power	4-40	-55 °C	125 °C	Receptacle Female Sockets		Polyester Thermoplastic	125 VDC	Flash	Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in				Nickel Plated Steel	5 A 40 A
EDAC Inc. 630-27W2240-5T5	Combo D-Sub	2	27	Copper Alloy	Solder	Coax Signal	4-40	-55 °C	125 °C	Receptacle Female Sockets	Board Lock Mounting Brackets	Polyester Thermoplastic	125 VDC	Flash	Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in
EDAC Inc. 630-27W2240-2NB	Combo D-Sub	2		Copper Alloy	Solder	Signal and Power	Housing/Shell (M3)	-55 °C	125 °C	Receptacle Female Sockets	Board Lock Mounting Brackets	Polyester Thermoplastic	125 VDC	Flash	Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in				Nickel Plated Steel	5 A 20 A
EDAC Inc. 630-27W2640-1N6	Combo D-Sub	2		Copper Alloy	Solder	Signal and Power	4-40	-55 °C	125 °C	Receptacle Female Sockets		Polyester Thermoplastic	125 VDC		Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in	10A 5A	0.76 Ám	30 Áin	Nickel Plated Steel
EDAC Inc. 630-27W2250-4TD	Combo D-Sub	2		Copper Alloy	Solder	Signal and Power	M3	-55 °C	125 °C	Receptacle Female Sockets	Board Lock Mounting Brackets	Polyester Thermoplastic	125 VDC	Flash	Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in					5 A 40 A
EDAC Inc. 630-27W2640-3TD	Combo D-Sub	2		Copper Alloy	Solder	Signal and Power	M3	-55 °C	125 °C	Receptacle Female Sockets	Board Lock Mounting Brackets	Polyester Thermoplastic	125 VDC		Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in		0.76 Ám	30 Áin		5 A 30 A
EDAC Inc. 630-27W2650-3NB	Combo D-Sub	2		Copper Alloy	Solder	Signal and Power	Housing/Shell (M3)	-55 °C	125 °C	Receptacle Female Sockets	Board Lock Mounting Brackets	Polyester Thermoplastic	125 VDC		Gold	Black	Through Hole Right Angle	27W2	4	UL94 V-0	9.4 mm	0.37 in		0.76 Ám	30 Áin	Nickel Plated Steel	5 A 30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 23.92

Description

General part information

630-27W Series

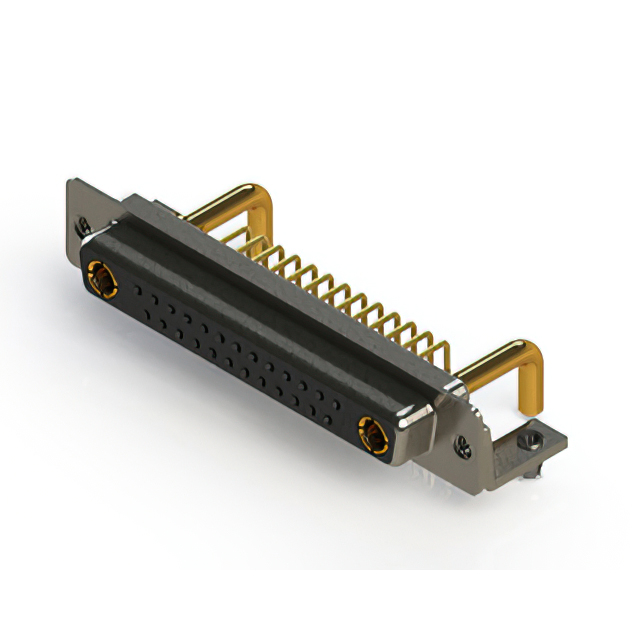

27 (25 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
