1-1337418-0

Active

TE Connectivity AMP Connectors

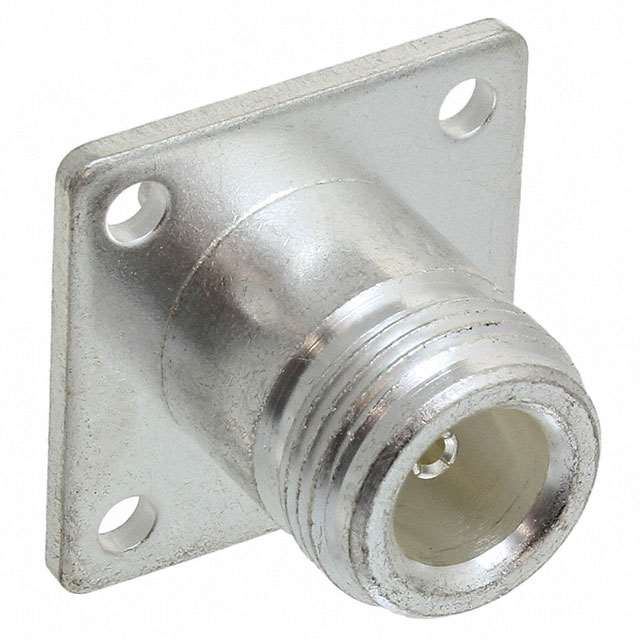

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337418-0

Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1000 VDC

CONN N JACK STR 50 OHM SOLDER

Part	Center Contact Plating	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Connector Style	Mating Cycles	Impedance	Frequency - Max [Max]	Voltage Rating	Housing Color	Body Finish	Body Material	Shield Termination	Connector Type	Dielectric Material	Contact Termination	Mounting Feature
TE Connectivity AMP Connectors 1-1337418-0	Silver	1	-65 ░C	165 °C	Brass	N Type	500	50 Ohms	11 GHz	1000 VDC	Silver	Silver	Brass	Solder	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	Solder Cup	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
