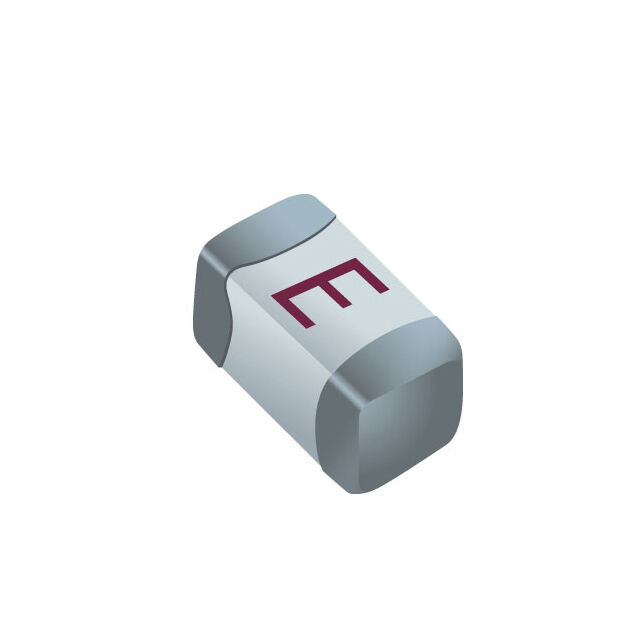

SF-0603SP700R-2-Z2
ActiveBourns Inc.
0603 TIME-LAG REV-SPUT. 7A
SF-0603SP700R-2-Z2
ActiveBourns Inc.
0603 TIME-LAG REV-SPUT. 7A
Description
General part information
SF-0603SP700R-2-Z2
7 A AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SF-0603SP700R-2-Z2 |
|---|---|
| Approval Agency | cURus, cUL |
| Breaking Capacity | 50 A |
| Current Rating | 7 A |
| DC Cold Resistance | 0.0047 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 5.04 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Response Time | Slow Blow |
| Size / Dimension Height | 0.024 in |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Voltage Rating - DC | 63 V |
