AZ943W-1AH-12DF
ActiveAmerican Zettler

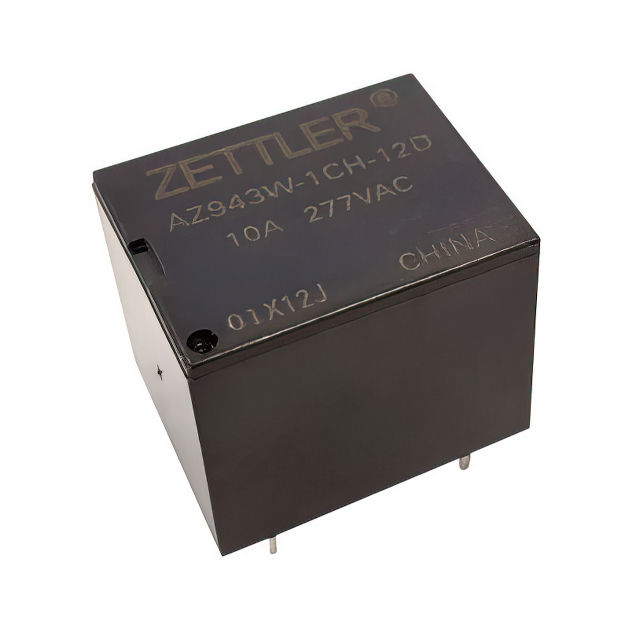

RELAY GEN PURPOSE SPST 10A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZ943W-1AH-12DF
ActiveAmerican Zettler
RELAY GEN PURPOSE SPST 10A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ943W-1AH-12DF |
|---|---|
| Approval Agency | TUV, VDE, UL, cUR |
| Coil Current | 44.4 mA |
| Coil Insulation | Class F |
| Coil Resistance | 270 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2770 VA, 300 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 277 VAC, 30 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 0.69 | |
Description
General part information
AZ943W-1A Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
